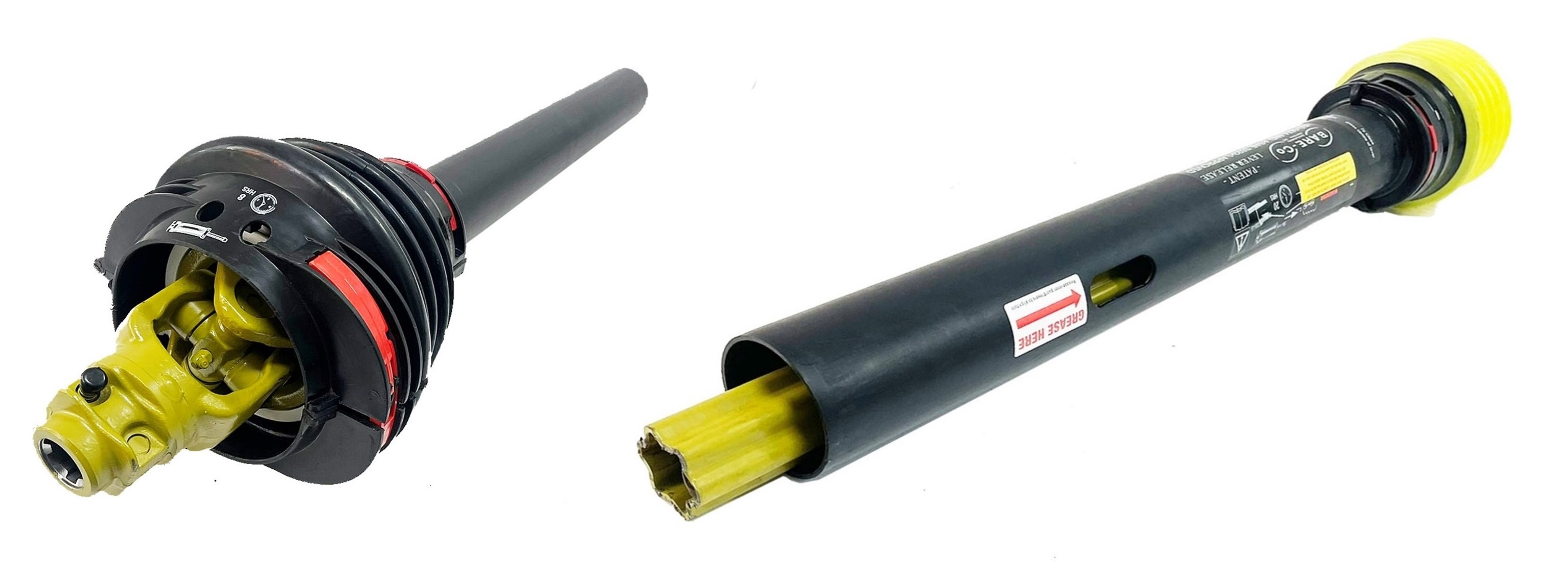

Wide Angle Half Shafts
WIDE ANGLE (C.V.) SHAFTS
Reduce your stock holding

Mix and match the half shafts shown below to

replace 30 complete wide angle drivelines

PATENT LEVER
RELEASE GUARD


ALLOWS INSTANT
ACCESS TO (up to 7)
GREASE POINTS

WIDE ANGLE JOINT ON
INNER TUBE END

                                           Shafts easily trimmed for custom lengths



POWER RATING


SHAFT SERIES




 @ 540 RPM @ 1000 RPM

 WIDE ANGLE HALF SHAFT

 TRACTOR END

(INNER DRIVE TUBE)

PLAIN END HALF SHAFT

 IMPLEMENT END

(OUTER DRIVE TUBE)



106hp

79kw



170hp

126kw


W2580 SERIES
Star Profile Drive Tube
80 degree
Wide Angle Joint



PART NUMBER



  END YOKE TYPE   PART NUMBER  END YOKE TYPE



IHW36150



1 3/8" x 6 splines quick release   OH36150  1 3/8" x 6 splines quick release



IHW3615020



 1 3/4" x 20 splines quick release  OH3615020  1 3/4" x 20 splines clamp yoke

 CROSS TO CROSS
Closed
51" 130cm


Open
83" 210cm

 OVERALL
Closed
66" 168cm


Open
105" 267cm

IHW3615021  1 3/8" x 21 splines quick release



OH3615021



1 3/8" x 21 splines clamp yoke





 OH36150634


1 3/4" x 6 splines clamp yoke

FOR NON STD. IMPLEMENT END

Order W2500 Series Attachments

Special End Yokes CLICK HERE

Shear Bolt Yokes CLICK HERE

Cam & Safety Clutches CLICK HERE



OHE36150

Shaft less end yoke

Left Arrow

For special end yoke, clutch etc. ORDER

Shaft less end yoke



125hp

93kw



200hp

150kw


P675 SERIES
Heat Treated Star Profile
Drive Tube
75 degree Wide Angle Joint

Non wide angle end yoke
= standard BARE-Co/ WALTERSCHEID
W2600 series

 IH675130  1 3/8" x 6 splines quick release OH675130 1 3/8" x 6 splines quick release
 IH67513020  1 3/4" x 20 splines quick release OH67513020 1 3/4" x 20 splines clamp yoke
IH67513021  1 3/8" x 21 splines quick release  OH67513634 1 3/4" x 6 splines clamp yoke

CROSS TO CROSS

Closed
54" 131cm


Open
93" 236cm

OVERALL

Closed
68" 173cm


Open
107" 272cm

FOR NON STD. IMPLEMENT END

Order W2600 Series Attachments

Special End Yokes CLICK HERE

Shear Bolt Yokes CLICK HERE

Cam & Safety Clutches CLICK HERE

OHEP675130

Shaft less end yoke

Left Arrow

For special end yoke, clutch etc. ORDER

Shaft less end yoke



WARNING !


80 degree (75 degree for P675 Series) Short Term Operation and Stationary.
25 degree Continuous Operation
Exceeding maximum angle will result in joint ball / socket FAILURE!
(NOT COVERED BY WARRANTY)
Tractor turning limiter should be fitted to the implement drawbar
.
