Integral Clutch Shaft
Integral Clutch Shaft

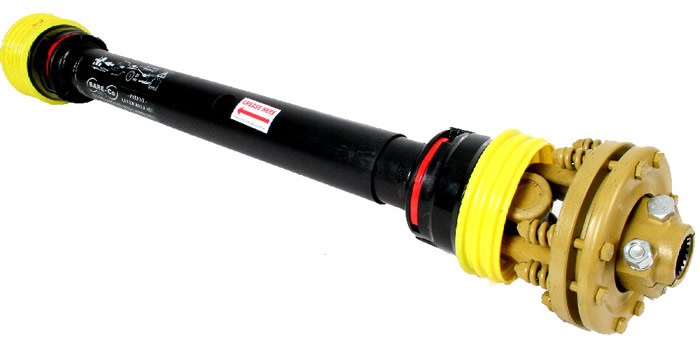

SHAFT WITH INTEGRAL CLUTCH
POWER
RATING

@540 RPM
TORQUE
RATING
SHAFT SERIES
SHAFT LENGTH
CROSS TO CROSS
PART No.
CLUTCH END
TRACTOR END
35hp
26kw
Approx.
340 ft lbs
467 NM
@ Spring Length
33mm (1.3")
4 series
Closed 35" (90cm)
Open 57" (145cm)
SB4086
1 3/8" x 6 Spline
Clamp
1 3/8" x 6 Spline
Quick Release
64hp
48kw
Approx.
622 ft lbs
844 NM
@ Spring Length
30mm (1.18")
6 series
Closed 39" (100cm)
Open 65" (165cm)
SB6105
Closed 59" (150cm)
Open 98 " (250cm)
SB6150
1 3/4" x 20 Spline
Quick Release
1 3/8" x 21 Spline
Clamp
1 3/8" x 6 Spline
Quick Release
1 3/8" x 21 Spline
Quick Release
1 3/4" x 20 Spline
Clamp
1 3/4" x 20 Spline
Quick Release
110hp
82kw

Approx.
1069 ft lbs
1450 NM
@ Spring Length
29mm (1.156")

8 series
2 Plate Clutch
Closed 39" (100cm)
Open 65" (165cm)
1 3/8" x 6 Spline
Clamp
1 3/8" x 6 Spline
Quick Release
Closed 59" (150cm)
Open 98 " (250cm)
Closed 39" (100cm)
Open 65" (165cm)
1 3/4" x 20 Spline
Clamp
1 3/4" x 20 Spline
Quick Release
Closed 59" (150cm)
Open 98 " (250cm)
Closed 39" (100cm)
Open 65" (165cm)
1 3/8" x 21 Spline
Quick Release

120hp
90kw



150hp
112kw



@ Spring Length
28.75mm (1.132")

Approx.
1167 ft lbs
1582 NM

@ Spring Length
25.4mm (1")

Approx.
1600 ft lbs
2170 NM


W2600 series
4 Plate Clutch
Closed 39" (100cm)
Open 65" (165cm)
Closed 39" (100cm)
Open 65" (165cm)
1 3/4" x 20 Spline
Quick Release
Closed 59" (150cm)
Open 98 " (250cm)
Closed 39" (100cm)
Open 65" (165cm)
1 3/8" x 6 Spline
Quick Release
1 3/4" x 6 Spline
Clamp
