End Yokes
See SPARE PARTS PAGE for Additional Yokes to use on NON-BARE-Co Shafts

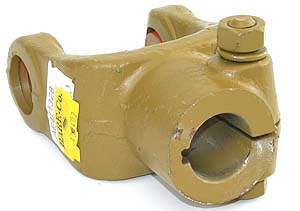

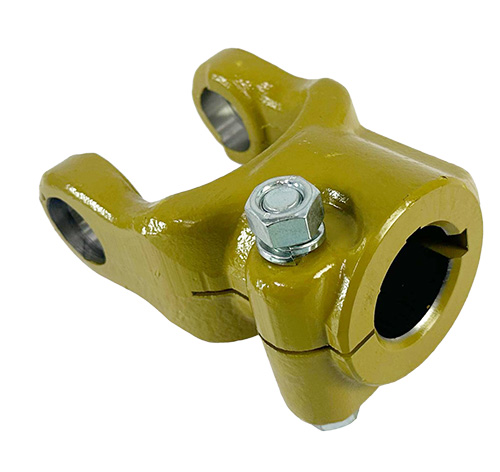

ROUND BORE CLAMP YOKES
SHAFT SERIES
ROUND BORE CLAMP YOKES
IMPERIAL
AE110322
7/8" bore
1/4" key
AE110325
1" bore
1/4" key

METRIC
A110320
20mm bore 8mm key
A110325
25mm bore 8mm key
A110330
30mm bore 8mm key

IMPERIAL
AE220322
7/8" bore
1/4" key
AE220325
1" bore
1/4" key
AE220328
1 1/8 bore
1/4" key
AE220332
1 1/4" bore
1/4 + 3/8" key

METRIC
A220325
25mm bore 8mm key
A220330
30mm bore 8mm key

IMPERIAL
METRIC
A311325
25mm bore 8mm key
A311330
30mm bore 8mm key

IMPERIAL
AE421322
7/8" bore
1/4" key
AE421325
1" bore
1/4" key
AE421328
1 1/8" bore
1/4" key
AE421332
1 1/4" bore
1/4 + 3/8" key
AE421335
1 3/8" bore
1/4 + 3/8" key
AE421338
1 1/2" bore
1/4 + 3/8" key
METRIC
A421325
25mm bore 8mm key
A421330
30mm bore 8mm key
A421335
35mm bore 8mm key + 10mm key

IMPERIAL
AE622328
1 1/8" bore
1/4" key
AE622332
1 1/4" bore
1/4 + 3/8" key
AE622335
1 3/8" bore
1/4 + 3/8" key
AE622338
1 1/2" bore
1/4 + 3/8" key

METRIC
A622330
30mm bore 8mm key
A622335
35mm bore 8mm key + 10mm key

IMPERIAL
AE035332
1 1/4" bore
1/4 + 3/8" key
AE035335
1 3/8" bore
1/4 + 3/8" key
AE035338
1 1/2" bore
1/4 + 3/8" key

IMPERIAL
AE723335
1 3/8" bore
1/4 + 3/8" key
AE723338
1 1/2" bore
1/4 + 3/8" key

METRIC
A723335
35mm bore 8mm key

IMPERIAL
AE7N335
1 3/8" bore
1/4 + 3/8" key
AE7N338
1 1/2" bore
1/4 + 3/8" key

METRIC
A7N335
35mm bore 8mm key

IMPERIAL
AE824335
1 3/8" bore
1/4 + 3/8" key
AE824338
1 1/2" bore
1/4 + 3/8" key

METRIC
A824335
35mm bore 8mm key

IMPERIAL



METRIC
A900335
35mm bore 8mm key

IMPERIAL



METRIC
A036335
35mm bore 8mm key

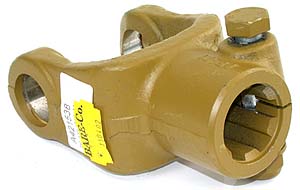

QUICK RELEASE SPLINED YOKES

SHAFT SERIES
QUICK RELEASE SPLINED YOKES
A110138
1 3/8" x 6 splines

A220118
1 1/8" x 6 splines
A220138
1 3/8" x 6 splines
A220121
1 3/8" x 21 splines

A311138
1 3/8" x 6 splines

A421118
1 1/8" x 6 splines
A421138
1 3/8" x 6 splines
A421121
1 3/8" x 21 splines

A622138
1 3/8" x 6 splines
A622121
1 3/8" x 21 splines
A622120
1 3/4" x 20 splines
A622134
1 3/4" x 6 splines
A035138
1 3/8" x 6 splines
A035121
1 3/8" x 21 splines
A035120
1 3/4" x 20 splines
A035134
1 3/4" x 6 splines
A723138
1 3/8" x 6 splines
A723121
1 3/8" x 21 splines
A723120
1 3/4" x 20 splines
A723134
1 3/4" x 6 splines
A7N138
1 3/8" x 6 splines
A7N121
1 3/8" x 21 splines
A7N120
1 3/4" x 20 splines
A7N134
1 3/4" x 6 splines
A824138
1 3/8" x 6 splines
A824121
1 3/8" x 21 splines
A824120
1 3/4" x 20 splines
A824134
1 3/4" x 6 spline
A900138
1 3/8" x 6 splines
A900121
1 3/8" x 21 splines
A900120
1 3/4" x 20 splines
A900134
1 3/4" x 6 spline
A036138
1 3/8" x 6 splines
A036121
1 3/8" x 21 splines
A036120
1 3/4" x 20 splines
A036134
1 3/4" x 6 spline
A026138
1 3/8" x 6 splines
A026121
1 3/8" x 21 splines
A026120
1 3/4" x 20 splines
A026134
1 3/4" x 6 spline
A77120
1 3/4" x 20 splines

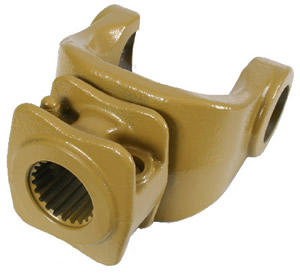

SPLINED CLAMP YOKES


SHAFT SERIES
SPLINED CLAMP YOKES
A220538
1 3/8" x 6 splines

A421538
1 3/8" x 6 splines
A421521
1 3/8" x 21 splines

A622538
1 3/8" x 6 splines
A622521
1 3/8" x 21 splines
A622520
1 3/4" x 20 splines
A035538
1 3/8" x 6 splines
A035521
1 3/8" x 21 splines
A035520
1 3/4" x 20 splines
A723538
1 3/8" x 6 splines
A723520
1 3/4" x 20 splines
A7N538
1 3/8" x 6 splines
A824538
1 3/8" x 6 splines
A824521
1 3/8" x 21 splines
A824520
1 3/4" x 20 splines
A824534
1 3/4" x 6 spline
A036538
1 3/8" x 6 splines
A036521
1 3/8" x 21 splines
A036520
1 3/4" x 20 splines
A036534
1 3/4" x 6 spline
A026520
1 3/4" x 20 splines

PILOT BORE YOKE
FLANGE YOKE
HEXAGON BORE YOKE

YOKE TYPE

1
SERIES
2/W200 SERIES
4/W210 SERIES
6/W220 SERIES
7/W230 SERIES
8/W240 SERIES
W2600
SERIES

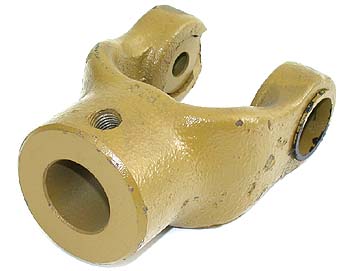

PILOT BORE YOKE
AE110019
3/4" pilot bore
AE220019
3/4" pilot bore
AE421019
3/4" pilot bore
AE622019
3/4" pilot bore
AE723019
3/4" pilot bore
AE824019
3/4" pilot bore
AE026019
3/4" pilot bore

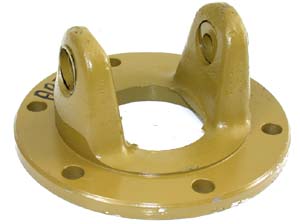

FLANGE YOKE



A421900
A622900
AB79193

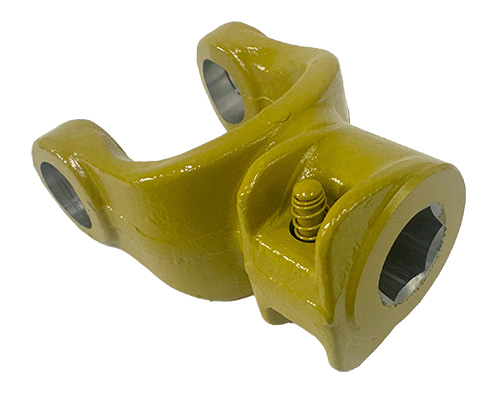

HEXAGON BORE YOKE





A421628
1 1/8" hexagon

A622628
1 1/8" hexagon







SPECIAL FLANGE YOKE
AB79193
Fits HOWARD with rectangular bar shaft and
7 Series BYPY triangle tube shaft.
IMPORTANT
A723 Uni-Cross must be used with this Yoke
0.0015" (.04mm) smaller diameter than A700 Uni-Cross.

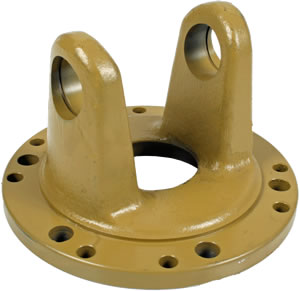

AB89193
Fits HOWARD with large 8 Series BYPY triangle tube shaft.
(you may wish to also order A824 Uni-cross)

NOTE: PTO SHAFT UPGRADE FOR MANY HOWARD MACHINES
This upgrade will replace BOTH flange yokes shown above!
HB8105
HEAVY DUTY 8 SERIES PTO SHAFT COMPLETE WITH ORIGINAL TYPE CLUTCH FLANGE YOKE

HB8105

Externally Greasable Drive Tubes.
Fits almost all HOWARD ROTARY HOES and SLASHERS from old "E" mounted to Latest Models.

Upgrades Early Machines to Latest LARGE SHAFT

TAPERED BORE YOKES
B1525 25mm tapered bore suits A220 uni-cross
B1530 30mm tapered bore suits A220 uni-cross
Suitable for HARDI equipment

ROUND BORE SHEAR PIN YOKE

2 SERIES
4 SERIES
6 SERIES
AE220032S
1 1/4" bore
AE421032S
1 1/4" bore
AE622035S
1 3/8" bore
AE421035S
1 3/8" bore
