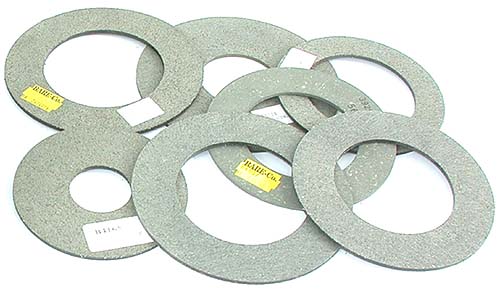

P.T.O: Clutch Discs
P.T.O: Clutch Discs
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

ASBESTOS FREE
PART No.
SIZE
APPLICATION
133mm OD x 89mm ID
5 1/4" x 3 1/2"
US Clutches = 970 - 5000
140mm OD x 85mm ID
5 1/2" x 3.346"

140mm OD x 89mm ID
5 1/2" x 3 1/2"
Bare-Co and BYPY 4 Series Shaft Mounted Clutches
160mm OD x 85mm ID
6.3" x 3.346"

160mm OD x 96mm ID
6.3" x 3.780"
Bare-Co and BYPY 6, 7, 8, W2600 Series Shaft Mounted Clutches
Rear Facing BARE-Co B9605 Freewheel Clutch
152mm OD x 91mm ID
6" x 3.58"
Walterscheid K90 and K92 series clutches
127mm OD x 45mm ID
5" x 1 3/4"
BARE-Co Gearbox mounted 6" clutches - ie. B4164 - B4166 - B9164
Jayben - early H. Spicer Clutches
165mm OD x 63mm ID
6 1/2" x 2 1/2"
BARE-Co Gearbox mounted 8" clutches - ie. B3605 - B4157 - B6693 - B4669 - B6669 - B6790
Front Facing BARE-Co B9605 Freewheel Clutch
146mm OD x 89mm ID
5 3/4" x 3 1/2"
New Holland Baler
160mm OD x 100mm ID
6.3" x 3.937"
Walterscheid F/K96 Clutch
