P.T.O: Over-run (freewheel) Couplings
Implement Over-Run Couplings
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
IMPLEMENT OVER-RUN (FREEWHEEL) COUPLINGS
  • THESE UNITS ARE NOT A SAFETY CLUTCH!
  • They prevent the tractor PTO and transmISsion being driven by implements on the over-run ie. inability to stop single clutch tractors such as the Ferguson Te20-MF35 single when a Rotary Cutter IS attached.
  • No protection under load hence normally used in conjunction with a separate clutch.

SEE COMBINED FREEWHEEL / SAFETY CLUTCHES

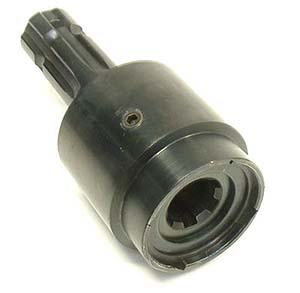

NON - QUICK RELEASE TYPE

Special Free Wheel Coupling for early production Te20 and JD tractors that do not have quick release groove on PTO shaft

PART No.
DESCRIPTION
1 1/8" x 6 spline female / 1 3/8" x 6 spline male
UNIVERSAL TYPE

Designed for fitting to implement end.
Implement Safety Guard must cover
coupling.

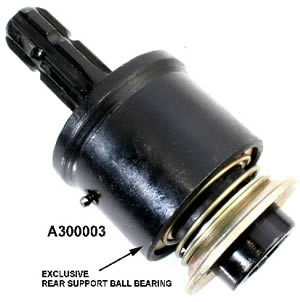

Exclusive Design Features Internal Bearing
Not to be fitted to tractor end as coupling may protrude past tractor PTO Guard

PART No.
DESCRIPTION
1 3/8" x 6 spline male / female
1 3/8" x 6 spline male / female Special Reverse Rotation Version for early imported Asian Tractors
1 1/8" x 6 spline female / 1 3/8" x 6 spline male

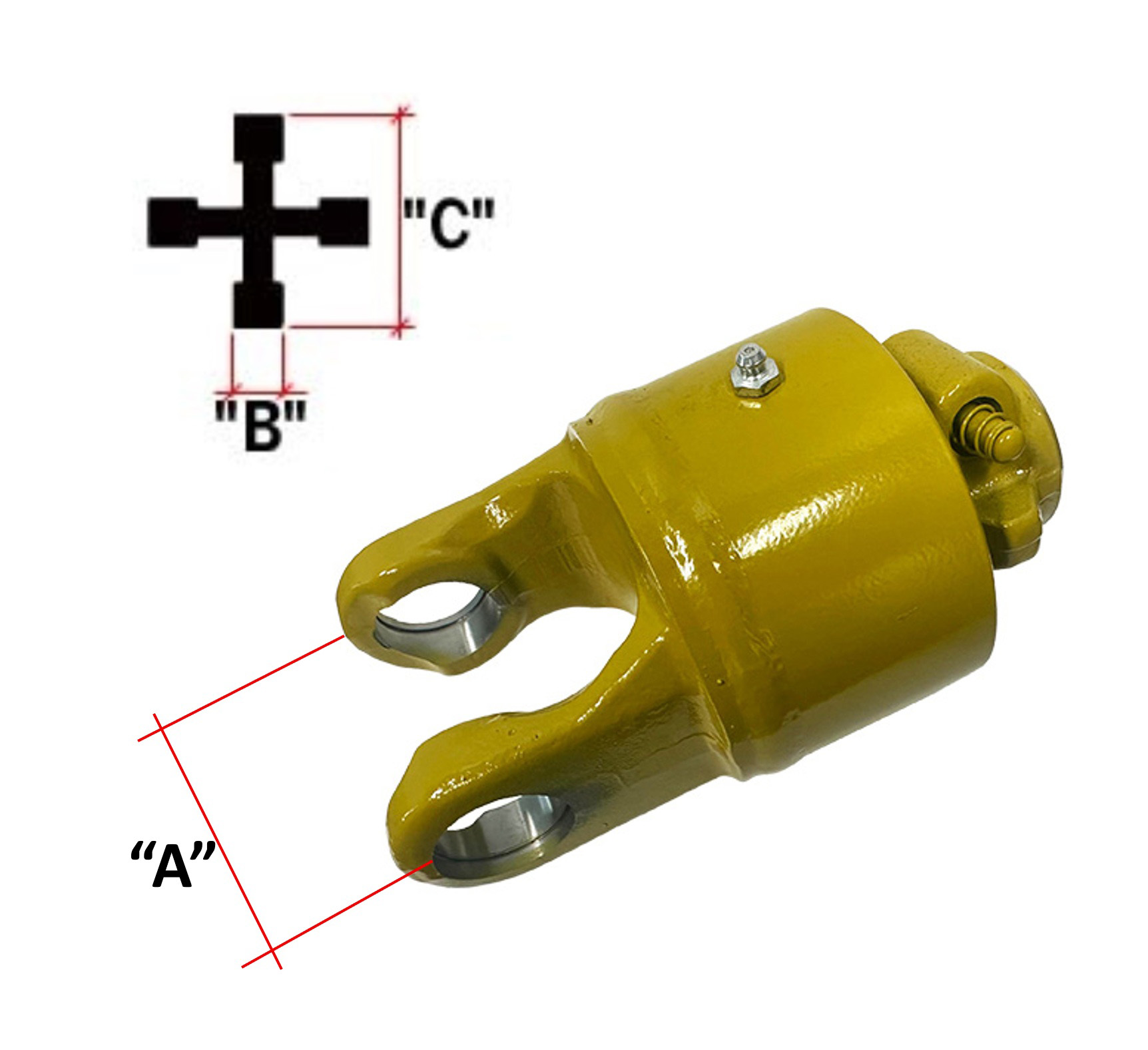

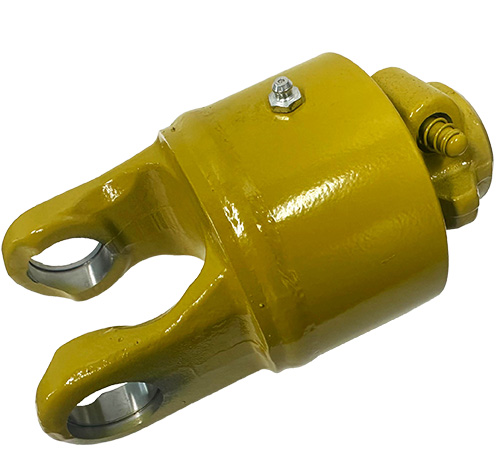

YOKE TYPE



DIMENSIONS
PART No.
APPLICATION
SHAFT SIZE
DESCRIPTION
"A"
"B"
"C"
68mm
2 5/8"
23.8mm
15/16"
61mm
2 13/32"
Suits A220 Uni-Cross
1 3/8" X 6 splines
Quick Release
Type
83mm
3 1/4"
27mm
1 1/16"
74.6mm
2 15/16"
Suits A421 Uni-Cross
101mm
4"
30.2mm
1 3/16"
92mm
3 5/8"
Suits A622 Uni-Cross
115mm
4 1/2"
42mm
1 21/32"
104mm
4 3/32"
Suits A026 Uni-Cross
1 3/4" X 20 splines
Clamp Type
115mm
4 1/2"
42mm
1 21/32"
104mm
4 3/32"
Suits A026 Uni-Cross
1 3/4" X 6 splines
Clamp Type

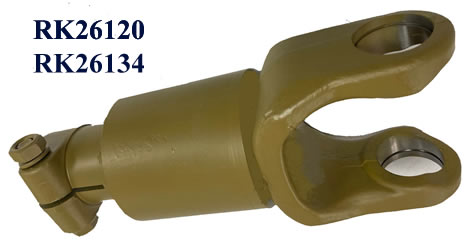

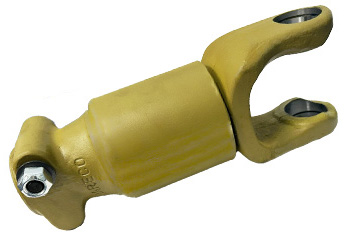

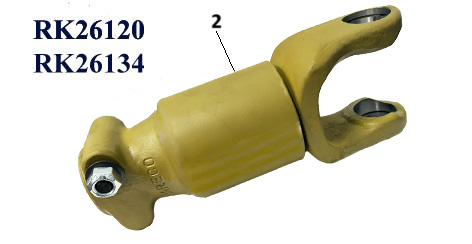

COMBINED OVER-RUN (FREEWHEEL)
& SAFETY CLUTCHES
Heavy Duty Units allow PTO driven implements to freewheel with adjustable safety protection under load.
  • Prevents expensive damage to internal tractor PTO packs.
  • Prevents single clutch tractors from being driven forward by PTO over-run.
  • Integral heavy duty adjustable dISc type safety clutch protects PTO drive line.


Click Below
Standard - Freewheel
Safety Clutches
Blue Torque Combined - Freewheel Safety Clutches
