CROSS KITS - SPLINED END YOKES
OUTSIDE CIRCLIP TYPES
FAST
FIND

Outside Circlip
Types

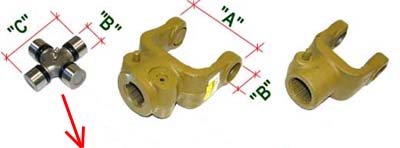

DIMENSIONS
"A"
"B"
"C"
APPLICATIONS
CROSS
QUICK RELEASE SPLINED END YOKES

57mm
approx

19mm
52mm
Small round bore joints e.g. Grain augers
A165



62mm
approx
22mm
54mm
Standard triangle tube shafts
BARE-Co & BYPY 1 Series
A110
A110138
1 3/8" x 6
splines






62mm
approx
22mm

55mm
Lemon profile shafts (W'schied)
+ non standard shafts

A010
A010138
1 3/8" x 6
splines







68mm
approx
23.8mm
61mm
BARE-Co & BYPY 2 Series
WALTERSCHEID -
H.SPICER 1140 Series
A220
A220118
1 1/8" x 6
splines
A220138
1 3/8" x 6
splines
A220121
1 3/8" x 21
splines



77mm
approx
27mm
70mm
BYPY 3 Series
WALTERSCHEID W1 Series
A311
A311138
1 3/8" x 6
splines







83mm
approx
27mm
74.6mm
BARE-Co 4 Series
BYPY 4 Series & SFT4 Series
WALTERSCHEID W210, W2300 Series
H.SPICER 1300 Series & JAYBEN
A421
A421118
1 1/8" x 6
splines
A421138
1 3/8" x 6
splines
A421121
1 3/8" x 21
splines



88mm
approx
27mm
81.76
Old style H SPICER 1310 Series
shafts (Rectangular bar)
A1310
A131138
1 3/8" x 6
splines






73mm
approx
28.6mm
67mm
USA 14N series shafts
AM14
AM14138
1 3/8" x 6
splines







95mm
approx
30.2mm
80mm
BYPY 5 Series,
BYPY SFT 5 Series
BYPY SFT 6 Series
A500
A500138
1 3/8" x 6
splines







101mm
approx

30.22mm



30.18mm
92mm
Standard triangle tube shafts
BARE-Co 6 Series,
BYPY 6 Series, BYPY SFT 7 Series
Difference only = .04 mm
(1 1/2 thou)
If in doubt use A622
Lemon tube shafts
WALTERSCHEID W220 Series
+ Hardy Spicer 1350 Series

A622138

1 3/8" x 6
splines

A622121

1 3/8" x 21
splines

A622120

1 3/4" x 20
splines

A622134

1 3/4" x 6
splines
122mm
approx
30.22mm



30.18mm
106.3mm
Standard triangle tube shafts
BYPY 7 Series
Difference only = .04 mm
(1 1/2 thou)
If in doubt use A723
Lemon tube shafts
WALTERSCHEID W230 Series
+ Hardy Spicer Rectangular bar shafts

A723138

1 3/8" x 6
splines

A723121

1 3/8" x 21
spline

A723120

1 3/4" x 20
splines

A723134

1 3/4" x 6
splines
84mm
approx
24/27mm
75/91mm
BARE-Co & WALTERSCHEID Wide Angle Shafts

80 degree
(welded flange) wide angle joints only.
BARE-Co 4 Series,
W'Schied W2380
AG2386138
1 3/8" x 6
splines
AG2386121
1 3/8" x 21
splines
86mm
approx
27/32mm
76/94mm
BARE-Co 6 Series,
W'Schied W2480, PW480
AG356138
1 3/8" x 6
splines
AG356121
1 3/8" x 21
splines
100mm
approx
32/36mm
89/106mm
BARE-Co 8 Series,
W'Schied W2580, PW580
AG366138
1 3/8" x 6
splines
AG366121
1 3/8" x 21
splines
AG366120
1 3/4" x 20
splines

90mm
approx

31.75mm
82mm
USA 35N Series shafts
AM35
AM35138
1 3/8" x 6
splines







127mm
approx
39mm
110mm
Standard USA 55N series shafts


86mm
approx
32mm
76mm
BARE-Co W2400 Series,
WALTERSCHEID W2400 Series, P400
A035
A035138
1 3/8" x 6
splines
A035121
1 3/8" x 21
splines
A035120
1 3/4" x 20
splines
A035134
1 3/4" x 6
splines
122mm
approx
35mm
106.3mm
BARE-Co 8 Series
BYPY 8 Series, SFT 9 Series WALTERSCHEID W240 Series
Hardy Spicer 1480 Series
A824
A824138
1 3/8" x 6
splines
A824121
1 3/8" x 21
splines
A824120
1 3/4" x 20
splines
A824134
1 3/4" x 6
splines
105mm
approx
35mm
94mm
BARE-Co - BYPY New 7 Series
BYPY SFT S8 & H8 Series
A7N
A7N138
1 3/8" x 6
splines
A7N121
1 3/8" x 21
splines
A7N120
1 3/4" x 20
splines
A7N134
1 3/4" x 6
splines
100mm
approx
36mm
89mm
BARE-Co W2500 Series
WALTERSCHEID W2500 Series, P500
A036
A036138
1 3/8" x 6
splines
A036121
1 3/8" x 21
splines
A036120
1 3/4" x 20
splines
A036134
1 3/4" x 6
splines
115mm
approx
42mm
104mm
BARE-Co - W2600 series
WALTERSCHEID W2600 series, P600
A026
A026138
1 3/8" x 6
splines
A026121
1 3/8" x 21
splines
A026120
1 3/4" x 20
splines
A026134
1 3/4" x 6
splines
120mm
approx
41mm
108mm
BYPY new 9 Series
A900
A900138
1 3/8" x 6
splines
A900121
1 3/8" x 21
splines
A900120
1 3/4" x 20
splines
A900134
1 3/4" x 6
splines
130mm
approx
41mm
118mm
BYPY 10 Series
A1000

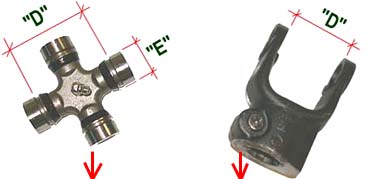

INSIDE CIRCLIP TYPES

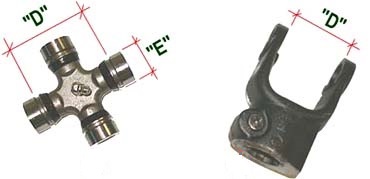

DIMENSIONS
"D"
"E"
APPLICATION
CROSS
QUICK RELEASE SPLINED END YOKES

36.5mm
inside

24.6mm
JAYBEN 1ag shafts
(Square drive bar + keyway)
USA 6N Series Shafts
A221
A221138
1 3/8" x 6 splines
46.8mm
inside
25.4mm
JAYBEN 2ag shafts
(Square drive bar + keyway)
A222
A222138
1 3/8" x 6 splines
60.3mm
inside
25.4mm
JAYBEN 3ag shafts
(Square drive bar + keyway)
A223
A223138
1 3/8" x 6 splines
65.8mm
inside
28.6mm
JAYBEN 5ag shafts
(Square drive bar + keyway)
A225
A225138
1 3/8" x 6 splines
84mm
inside
33.3mm
JAYBEN 8ag shafts
(Square drive bar + keyway)
A224
N/A
71mm
33mm
Standard U.S. 44N Series
AM44
N/A
46.4mm
inside
27mm
US 12N Series
AM12
AM12138
1 3/8" x 6 splines
