Complete PTO Shafts Lower Power
STANDARD P.T.O. SHAFTS
STANDARD SHAFTS include
SAFETY GUARD &
1 3/8 x 6 spline
QUICK RELEASE YOKE BOTH ENDS

Click Here
for

75 - 150 HP
Higher Power
Ratings

Reduce Rated HP by 40% for severe conditions.
For NON STANDARD END YOKES order shaft LESS YOKE (below)
then select SPECIAL END YOKE from
End Yokes Page
IDENTIFICATION
12KW-16HP @ 540 rpm
19KW-26HP @ 1000 rpm
16KW-21HP @ 540 rpm
26KW-34HP @ 1000 rpm
26KW-35HP @ 540 rpm
42KW-56HP @ 1000 rpm
48KW-64HP @ 540 rpm
77KW-102HP @ 1000 rpm
39KW-53HP @ 540 rpm
61KW-83HP @ 1000 rpm
Triangular Profile Drive Tube



Shaft Series

Star Profile
Drive Tube

STANDARD SHAFT
Has Quick Release yokes at
both ends
.

(1 3/8" x 6 spline)
AB1060
LENGTH
Cross to Cross
Overall
60-85cm
78-102cm
----------------------
AB1075
LENGTH
Cross to Cross
Overall
75-110cm
94-127cm
---------------------
AB1090
LENGTH
Cross to Cross
Overall
90-145cm
110-163cm
AB2045
LENGTH
Cross to Cross
Overall
45-64cm
66-84cm
----------------------
AB2060
LENGTH
Cross to Cross
Overall
60-85cm
81-104cm
----------------------
AB2075
LENGTH
Cross to Cross
Overall
75-110cm
97-130cm
----------------------
AB2105
LENGTH
Cross to Cross
Overall
100-160cm
119-180cm
----------------------
AB2150
LENGTH
Cross to Cross
Overall
150-250cm
173-270cm
AB4060
LENGTH
Cross to Cross
Overall
60-85cm
84-106cm
----------------------
AB4075

LENGTH
Cross to Cross
Overall
75-110cm
100-130cm
----------------------
AB4105
LENGTH
Cross to Cross
Overall
100-160cm
122-182cm
----------------------
AB4150
LENGTH
Cross to Cross
Overall
150-250cm
175-270cm
----------------------
AB4205
LENGTH
Cross to Cross
Overall
200-340cm
224-360cm
AB6075
LENGTH
Cross to Cross
Overall
75-110cm
102-130cm
----------------------

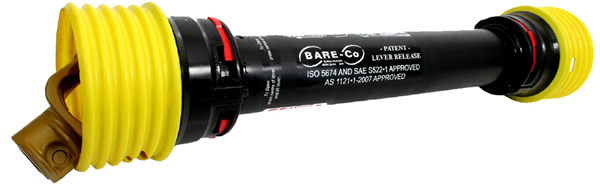

AB6105
LENGTH
Cross to Cross
Overall
100-160cm
125-180cm
----------------------
AB6150
LENGTH
Cross to Cross
Overall
150-250cm
180-270cm
----------------------
AB6205
LENGTH
Cross to Cross
Overall
200-340cm
226-360cm

AW35105

LENGTH
Cross to Cross
Overall
100-160cm
125-180cm

----------------------

AW35150

LENGTH
Cross to Cross
Overall
150-250cm
180-270cm
SHAFT WITH:
One Standard Yoke
1 3/8" x 6 spline
and NO end yoke
on the other end

...will accept non-standard yoke from:
EB1060
LENGTH
Cross to Cross
Overall
60-85cm
70-96cm
----------------------
EB1075
LENGTH
Cross to Cross
Overall
75-110
94-127cm
----------------------
EB1090
LENGTH
Cross to Cross
Overall
90-145cm
100-152cm
EB2045
LENGTH
Cross to Cross
Overall
45-64cm
56-73cm
----------------------
EB2075
LENGTH
Cross to Cross
Overall
75-110cm
97-130cm
----------------------
EB2105
LENGTH
Cross to Cross
Overall
100-160cm
109-170cm
----------------------
EB2150
LENGTH
Cross to Cross
Overall
150-250cm
162-260cm
EB4075
LENGTH
Cross to Cross
Overall
75-110cm
89-120cm
----------------------
EB4105
LENGTH
Cross to Cross
Overall
100-160cm
112-170cm
----------------------
EB4150
LENGTH
Cross to Cross
Overall
150-250cm
165-260cm
EB6105
LENGTH
Cross to Cross
Overall
100-160cm
125-180cm
----------------------
EB6150
LENGTH
Cross to Cross
Overall
150-250cm
165-260cm

EW35105
LENGTH
Cross to Cross
Overall
100-160cm
125-180cm
----------------------
EW35150
LENGTH
Cross to Cross
Overall
150-250cm
165-260cm


SHAFT: Has
NO END YOKES
...to accept non-standard yoke from:
N/A
EE2075
LENGTH
Cross to Cross
Overall
75-110cm
75-110cm
----------------------
EE2105
LENGTH
Cross to Cross
Overall
100-160cm
100-160cm
----------------------
EE2150
LENGTH
Cross to Cross
Overall
150-250cm
150-250cm
EE4075
LENGTH
Cross to Cross
Overall
75-110cm
75-110cm
----------------------
EE4105
LENGTH
Cross to Cross
Overall
100-160cm
100-160cm
---------------------
EE4150
LENGTH
Cross to Cross
Overall
150-250cm
150-250cm
EE6105
LENGTH
Cross to Cross
Overall
100-160cm
100-160cm
----------------------
EE6150
LENGTH
Cross to Cross
Overall
150-250cm
150-250cm
N/A
See Also 75 - 150 HP Page for Higher PowerRatings
