CASE - I.H. Engine Kits & Parts

Now available with a NEW CRANKSHAFT for little more than a basic regrind for most applications
3 KIT LEVELS

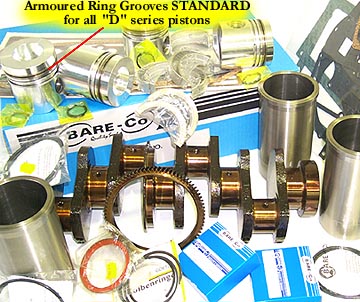

"EK" - FOR IN-FRAME REPAIR. Includes - Pistons, Gudgeon Bushes, Piston Rings, Liners, Con Rod Bearings, Top & Bottom Gasket Sets.

"EKM" - FOR OUT OF FRAME REBUILD. Includes ALL of the above PLUS - Main Bearings (you specify under-size required at NO EXTRA COST), Thrust Washers, Front & Rear Seals.

"EKMC" - same as EKM but INCLUDING A NEW CRANKSHAFT

IMPORTANT
To reduce your Inventory levels, Bare-Co lists VALVE TRAIN KITS separately below the Engine Kit Part Numbers. Valve Train Kits will fit a range of different engine kits.
APPLICATION
ENGINE
KIT
PISTON / LINER
KIT (1 CYL)
RING SET
(1 CYL)
PISTON
LINER
LINER
''O'' RING
BD144 4 cyl engine
3 3/8" bore

B250, B275, B276, 354

Very early B250 with rope rear
seal (B2283) requires mods.
for EKM Kits. See Crankshaft page

B2456
=
3044479R94

B3610
=
3114775R91
(3 3/8'' bore)

B6456
=
3044486R3
Suits BD154 Eng. only
(3 1/2'' bore)
B7556
=
3044481R3
Suits BD154
Engine only
(3 1/2'' bore)
B7508
(4 req)
BD154 4 cyl engine
3 1/2" bore

374, 384, A414, B414, 434, 444
B2622
=
3114778R91
(3 1/2'' bore)

*NOTE: This kit uprates BD144
engine to 3 1/2'' (89mm) bore.
For BD144 (3 3/8'' bore) Eng.
fit 4 of B2456 3 1/2 '' bore kits.

D179 3 cyl engine
3 7/8" (98.425mm) bore

454, 484, 485, 495, 640,
523, 533, 633, 3220

EK20
EKM20
B5084
=
3139591R96
includes ALL
''O'' rings
identify by 15/16" (24mm)
deep piston bowl
B7402
=
3218416R91
ONLY suits engines
with 3 ring piston
and tapered
(wedge type)
top ring.
i.e. late type pistons
B6084
(Bonded insert type)
= 3139591R96
NOTE: Replace full set
15/16" (24mm) deep piston bowl
Do not confuse with
D206, D310 engines (below) which have
shallow 25/32"
(20mm) piston bowl
B7557
=
3139592R2

Identify by
8 1/2"
(216mm) length
B7506
pair of ''O''rings
suits all
models

(Single cyl set)

D239 4 cyl engine
3 7/8" (98.425mm) bore

724, 744, 745, 833, 574, 674, 684, 685, 695

EK21
EKM21
EKMC21

D358 6 cyl engine
3 7/8" (98.425mm) bore

866, 886, 956,1046, 1055, 1056, 1255, 3288

EK22
EKM22
D155 3 cyl engine
3 7/8" (98.425mm) bore

385, 395, 3210, 353, 383, 423, 433, 453, 533, 440, 540 (3 cyl)
B7721
includes ALL
''O'' rings
identify by 25/32" (20mm)
deep piston bowl
B7719
(Bonded insert type)

NOTE: Replace full set
identify by 25/32" (20mm) deep
piston bowl
B7720
=
3139587R3

Identify by 7.9" (201mm) length

D206 4 cyl engine
3 7/8" (98.425mm) bore
identify by 25/32" (20mm) deep piston bowl

474, 654, 584, 585, 595
624, 733, 740, 3230

EK94
EKM94
EKMC94

D310 6 cyl engine
3 7/8" (98.425mm) bore
identify by 25/32" (20mm) deep piston bowl

756, 686, 786, 696,
766
(with D310 engine),

EK95
EKM95
D268 4 cyl engine
3.937" (100mm) bore

Fits early (non-upgraded) engines with narrow
42mm wide journals and
narrow 30mm wide rod
bearing shells.
844, 845, 884, 885, 895, 4230

B7090
=
3218461R95
B7088
=
3144977R91
Suits 3 ring piston
B7089
=
3144682R3
D268 4 cyl engine
3.937" (100mm) bore

Fits late (upgraded) engines
with wide 44mm journals and
32mm wide rod bearing shells.
844, 845, 884, 885, 895, 4230

D402 6 cyl engine
3.937" (100mm) bore
1455, 1455XL

Perkins A4 - 212 engine
475

EK14
EKM14
EKMC14
B2988
MUST fit full set
B2620
B6988
B7543
Finished
B7547
Semi finished
N/R
CASE - I.H. Engine Kits & Parts
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
