CASE - I.H. Cooling
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.




11



8

9

10
7
Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION

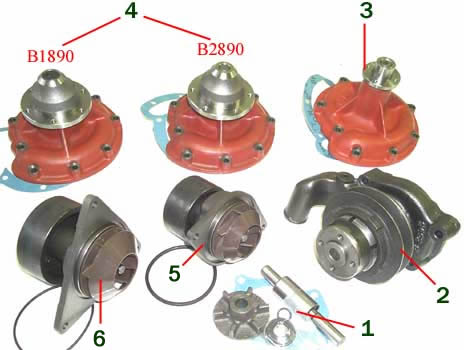

1
B2952
1094021R91
WATER PUMP
REPAIR KIT
B250, B275, 354, 374, 384, 414, 434, 444
2
B2898
703820R95
WATER PUMP
B250, B275, 354, 374, 384, 414, 434, 444
Models with Generator (NOT Alternator)
3
B2889
Uprated
4 3/8" (112mm)
impeller
3136053R92
3132739R93
WATER PUMP
544, 454, 474, 574, 674, 484, 584, 684, 784, 884,
385, 485, 585, 685, 785, 885,
395, 495, 595, 695, 795, 895, 995 +XL
3210, 4210, 3220, 4220, 3230, 4230, 4240

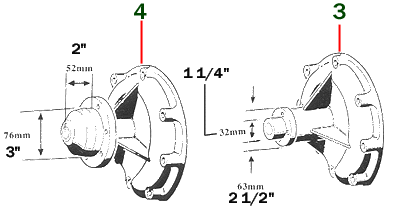

4
B2890 *
3132676R93
PUMP ASSY. INCL HUB
Standard Bearing
21/32" (17mm) Hub Shaft
*Confirm hub dimensions.
Select correct shaft diameter and use old hub on machines with special hubs.
946, 1046, 1246, 1055, 1255, 1455 + XL
756, 956, 1056
766, 866, 976, 686, 786, 886, 986, 696, 3288
B1890 *
3144661R93
PUMP ASSY. INCL HUB
H.Duty Bearing with
15/16" (24mm) Hub Shaft
5
B9337
J802970
J802358
WATER PUMP ASSEMBLY
MAXUM MODELS
MX90, MX100, MX120, MX135
5120, 5130, 5140, 5150
CASE 1640, 1840, 1845, 752,

MX110, MX150, MX170
5230, 5240, 5250
McCormick
MTX110, MTX120, MTX135, MTX150, MTX175
6
B9338
J802479
J802975
MAGNUM MODELS
7110, 7120, 7130, 7140
CASE 721, 1660, 1680

7150, 7210, 7220, 7230, 7240, 7250
8910, 8920, 8930, 8940, 8950, 9110, 9130, 9210, 9230
9240, 9250, 9260, 9310, 9330, MX180, MX200, MX220
7
B802
8013363
JX55, JX60, JX65, JX70, JX80, JX85, JX90, JX95, JX100U, JX100C, JX1070, JX1075C
JX55T, JX70U, JX75, JX75T, JX80U, JX90U, JX100, JX1060C, JX1060V, JX1070C, JX1095N, JX1095V
55JXM, 65JXM, 75JXM, 80JXM, 90JXM,
AVJ55, AVJ60, AVJ70
8
82847714
87801641
87840823

MXM135, MXM150, MXM165 MXM180
AFTER S/N HCC0030000 Brazil Built

9
87802496 87384588
MXM120, MXM130, MXM140, MXM155 MXM175, MXM190
10
87803065 504062854

JX1070U, JX1080U, JX1090U, JX1100U
MXU100, MXU110, MXU115, MXU135
MXU125
MXU100, MXU110
MXU100, MXU110, MXU115
WDX1002S, WDX1202, WDX1202S

11
293515A1
WATER PUMP
Single Thermostat
Models only.
Up to Serial No: JJE1008568
Case IH C70, C80, C90, C100
CX70, CX80, CX90, CX100

McCormick:
C70, C80, C90, C100
CX70, CX80, CX90, CX100
