P.T.O: 200 mm Combined Freewheel - Safety Clutch 2
200 mm (8") Safety Clutch

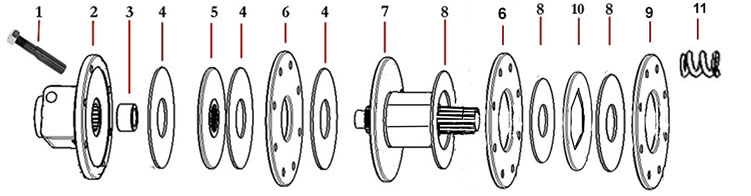

200mm (8") 6 PLATE COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS
REF
PART No.
DESCRIPTION
1
Cotter Clamp Bolt and Nut
2
1 3/8" x 6 Spline Base assembly (includes bush and clamp bolts)
1 3/4" x 20 Spline Base assembly (includes bush and clamp bolts)
1 3/4" x 6 Spline Base assembly (includes bush and clamp bolts)
3
Bush for B3720 Base
Bush for B4720 / B5720 Base
4
Facing 165mm (6 1/2") x 63mm (2 1/2") - 3 req
5
Splined Drive Plate for Overrun Assembly
6
Pressure Plate - 3mm (0.118") Thick - 2 req
7
Freewheel Unit 1 3/4" x 20 spline.
8
Front Facing 160mm x 100 (6 19/64") x 100 mm (3.937") - 3 req
9
Front Pressure Plate
10
Inner Hexagon Drive Plate
11
Dark Blue Heavy Duty Spring (8 req.) .
