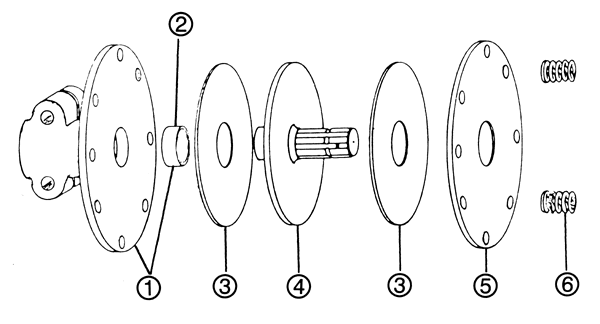

REF
|
PART
No.
|
DESCRIPTION
|
|
1
|
|
1
3/8" x 6 Spline Base Assembly (includes bush)
|
|
1
3/8" x 21 Spline Base Assembly (includes bush) |
|
|
1
3/4" x 20 Spline Base Assembly (includes bush)
|
|
|
1
1/4" Round Bore 1/4" keyway base assembly
(includes bush)
|
|
|
1
3/8" Round Bore 3/8" keyway base assembly
(includes bush)
|
|
|
1
1/2" Round Bore 3/8" keyway base assembly
(includes bush)
|
|
2
|
|
Bush
1 1/8" ID
|
|
3
|
|
Friction
Disc 6 1/2" OD x 2 1/2" ID (2 req)
|
|
4
|
|
1
3/8" x 6 spline Drive Plate 6 1/2" OD - 1
1/8"dia Spigot
|
|
1
3/4" x 20 spline Drive Plate 6 1/2" OD - 1
1/8"dia Spigot |
|
5
|
|
Outer Pressure Plate
|
|
6
|
|
Zinc Plated (Silver) Spring
(8 req.)
|
|
Blue Heavy Duty Spring
(8 req.) |
7 |
|
Cotter Clamp Bolt and Nut for 20 spline cotter type base. |
