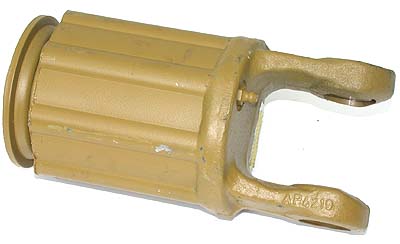

Yoke Type Torque Limiter Clutch
Yoke Type Torque Limiter Clutch



Torque Limiter Clutches
These units are only recommended for applications where space is the limiting factor.
Being non-adjustable mechanical pawl type units, life will be limited if subjected to continual overload with lack of lubrication.
NOT RECOMMENDED FOR ROTARY CUTTERS.
Part No.
Description
Shaft Series
Torque
1 3/8" x 6 Splines
For A421 uni-cross

900NM (664 ft-lb)
1 3/8" x 6 Splines
For A600 uni-cross
1200NM (885 ft-lb)
1 3/8" x 21 Splines
For A600 uni-cross
1 3/4" x 20 Splines
For A036 uni-cross
2500NM (1843 ft-lb)
1 3/4" x 6 Splines
For A036 uni-cross
