Universal Gearboxes
Universal Gearboxes
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
30 HP
TAPER ROLLER BEARINGS - 11 KG
15HP
BALL BEARINGS 7 KG

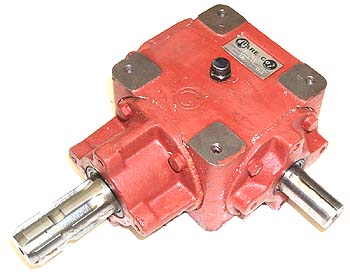

B1570 Ratio 1:1
Input 1 3/8" x 6 Spline
Output 1" Dia with 1/4"straight key
Mount: 4.1/4" Hole Centres.

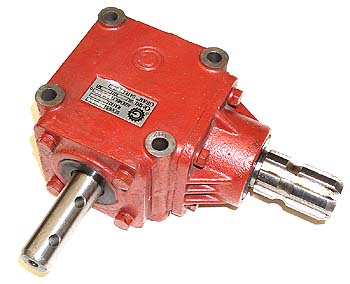

B1568 Ratio 1:1
Input Shaft 1 3/8" x 6 Spline
Output Shaft 25mm with 7mm Holes
Mount: 90mm Hole centres
20 HP
TAPER ROLLER BEARINGS- 6 KG
60 HP
TAPER ROLLER BEARINGS - 20 KG

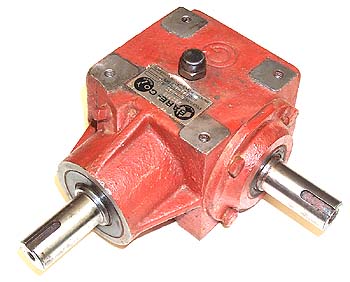

B1569 Ratio 1:1
Input/Output 7/8"dia.1/4"straight key
Mount: 79mm x 73mm Hole centres

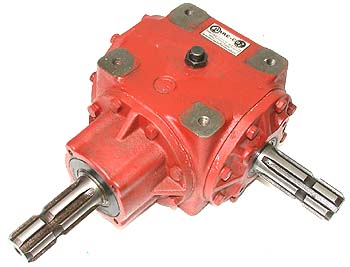

B1571 Ratio 1:1
Input / Output 1 3/8" x 6 Spline
Mount:4 1/2" Hole Centres
Universal Gearboxes
