JD Single Plate Clutches & Kits
Single Plate Clutches & Kits
FULL CLUTCH KITS INCLUDE: Cover assembly, Clutch plates, Thrust brg. assembly, Pilot bearing ... at special kit pricing!
Application
Notes
KIT: Incl.
All Bearings
Cover
Assembly
Clutch
Plate
Thrust
Bearing
Pilot
Bearing
1020, 1120, 2020, 2120
1030, 1130, 1530, 1630
1830, 2030, 2130

280mm (11")
Clutch
1" x 15 Spline plate



SEE BELOW

For Late
Series with
330mm (13") &
300mm (12") Clutch
B9358
with
RIGID CENTRE
Plate

B9359
with
SPRUNG HUB Plate
B6838
=AL56167

ORGANIC
B6842

=AL23511
RIGID CENTRE
280 x 26mm
(11" x 1")
x 15 Splines

OPTION
B6843
=AL31436
SPRUNG HUB 280mm x 26mm
(11" x 1")
x 15 splines
B892
=AL39541
B890
=
JD10107
840, 940, 1040, 1140, 2150
up to ser. no.495152
(Feb 1983) =280mm (11") Clutch

1640, 1840, 2040, 2240
, 2150
up to ser.no 463068
(Aug 1982) =280mm (11") Clutch
840, 940, 1040, 1140
From Ser.No.495153
(Feb 1983)
2040, 2240, 2255, 2350, 2355, 2355N, 1350, 1550
1750, 1850N, 1950N
2250, 2450
330mm (13") CLUTCH

1) IMPORTANT
320mm (12 1/2") models with 27 spline PTO hub will require machining of flywheel pot to 330.5mm (13.01") dia. x 21.6mm (0.85") depth for latest large dia. clutch.

2) Before ordering
cover or kit: confirm PTO Hub Spline Size. Some tractors shipped with alternate transmission

B9360
Mechanical
thrust bearing.

Non Cab
Models
with 38.5mm
(1 1/2")
x 23 Spline
PTO Hub on clutch cover
B9370
Hydraulic
thrust bearing

(50 Series
+SG2 Cab
)

B9840
=AL64417

320mm

with 38.5mm
(1 1/2")
x 23 Spline
PTO Hub on clutch cover





B6845
=AL36525
SPRUNG HUB
320mm (12 1/2 ") x 1" x 15 spline
ORGANIC DISC
B892
=AL39541
Mechanical
thrust bearing.

Non Cab Models Only


B7717
=AL39242
Internal Hydraulic Thrust Bearing
50 Series Models with SG2 cab
1640, 1840, 2650N
Confirm Cover Spline Size
2040S
2140, 2840, 3040, 3140,
2550, 2555, 2650, 2750, 2755, 2850, 2855, 2940, 2950, 2955,
3050, 3055, 3150, 3350

3640
(all have SG2 cab)

Mechanical
thrust bearing.

Non Cab
Models
.
B9371

ORGANIC
B9372
CERAMIC
with 45mm
(1 3/4")
x 27 Spline
PTO Hub on clutch cover
Hydraulic
thrust bearing

(50 Series
+SG2 Cab
)
B9373

ORGANIC
B9374
CERAMIC




B6840

=AL68485
330mm (13")

with 45mm
(1 3/4")
x 27 Spline
PTO Hub on clutch cover




B7695
=AL33126
SPRUNG HUB
ORGANIC

320mm
(12 1/2 ") Dia
x 1 1/4" 10 Spline

OPTION
B6846
=AL57415
SPRUNG HUB
CERAMIC

320mm
(12 1/2 ") Dia
x 1 1/4" 10 Spline
2130 without HI-LOW
Power Shift

IMPORTANT
Flywheel machining required for B6839
.

300mm (12")
Clutch

Flywheel dia
326 ± 0.3mm
Pot depth
21.6 ±
0.25mm

Bolts required
3/8" x 2 3/4" UNC
x 6"

B894
=AL23095
300mm (12")
B895
=AL23094
1"x 15 Spline
ORGANIC
B892
=AL39541
2130 with HI-LOW
Power Shift

3120, 3130
2840
B9376
with
CERAMIC
PLATE


B9377
with
ORGANIC
PLATE
B6839
=AL28039
300mm (12")

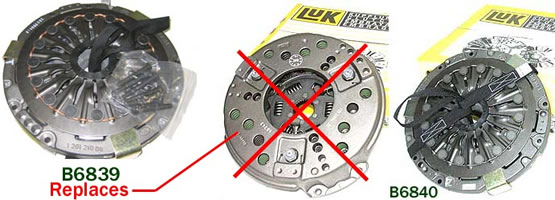

Diaphragm Clutch replaces Finger Clutch
B6844
=AL26466
CERAMIC

300mm (12")
1 1/4" x 10 Spline

OPTION
B7696
=AL30452
ORGANIC
300mm (12")
1 1/4" x 10 Spline

3650
3155
3255
330mm (13")
Clutch
1 3/4" x 27 Spline PTO Hub
B3921
=AL68484
AL68486
B3922
=AL62237
CERAMIC
13" x 1 1/4" x 10 Spline
B7717
=AL39242
