John Deere - Instruments
Instruments

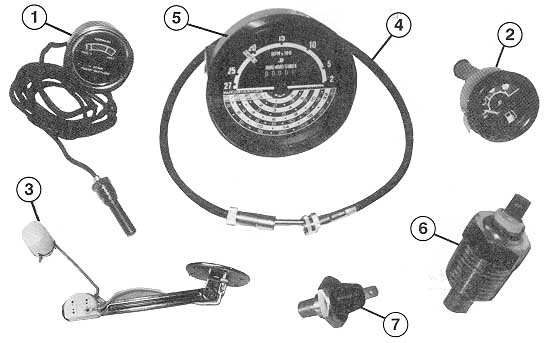

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B3834
AL24293
AL24186
TEMPERATURE GAUGE
CAPILLARY

(NON ELECTRICAL)

Following models fitted with original
capillary tube gauge
1020, 1120, 2020, 2120, 3120
1030, 1130, 1630, 1830, 2030
2130, 3030, 3130

2
B7722
AL24294
FUEL GAUGE

All models shown above

3
B1175
AT31619
FUEL SENDER UNIT

All models shown above plus
following models with metal fuel tank
1040, 1140, 1640, 2040
2140, 3040, 3140

B948
AL33498

Following models with plastic fuel tank
1040, 1140, 1640, 2040
2140, 3040, 3140

4
B1168
AL23837
HOUR METER CABLE

1020, 1120, 1030, 1130, 1630, 1830

B1169
AL23838

2020, 2120, 2030, 2130

B1170
AT27372

3120, 3130

5
B7699
AL30800
HOUR METER
CABLE DRIVEN
4 1/4" OD
- will NOT fit very
early models with 4 7/8" hole.

1020, 1120, 1030, 1130, 1630, 1830
2020, 2120, 2030, 2130, 3120, 3130

6
B1171
AL24527
TEMPERATURE
SENDER UNIT

All European models fitted with
electrical temp gauge

7
B1172
AR27977
(AT85174)
OIL PRESSURE
SENDER UNIT

All European models + following
U.S. models
2010, 3010, 3020, 4010
4020, 5010, 5020
