Hydraulic Top Links

STANDARD HYDRAULIC TOP LINK
Maximum Pushing Force - 29,419 N (3000kg)
Maximum Pulling Force - 19,613 N (2000kg)
For HEAVY DUTY applications SEE BELOW

Does NOT include Anti-Creep Valve


Part No.
Linkage Category

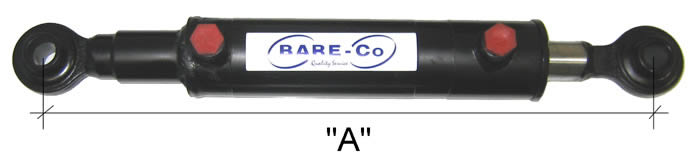

Length "A"
Cylinder Bore
Port Size
Cat. 1 (3/4")
18.5" to 26" (470 to 660mm)
2" (51mm)
9/16" UNF
(UN O-Ring)
20.5" to 28" (520 to 710mm)
24" to 32 " (610 to 812mm)
Cat. 2 (1")
21.5" to 29.5 " (546 to 750mm)
2 1/2" (63mm)
3/4" UNF
(UN O-Ring)
24.5" to 32 " (622 to 812mm)
B9409
Flow Control Valve
1/2" NPTF Ports
B7220
Hose Kit -
See Below
  CLICK HERE for these connecting fittings.
Heavy Duty Hydraulic Top Link
Includes Anti-Creep Valve
B8111
Cat 2 (1" dia) ball both ends
  • port size 3/8" BSP
  • includes anti-creep valve
  • adjustment range 620mm to 890mm
  • cyl bore dia 63mm
  • piston rod dia 35mm
B8112

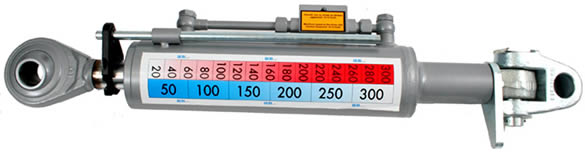

Cat 3 (1ΒΌ" dia) ball end with Cat 3 Knuckle
  • port size 3/8" BSP
  • includes anti-creep valve
  • adjustment range 700mm to 910mm
  • cyl bore dia 80mm
  • piston rod dia 40mm
B8113

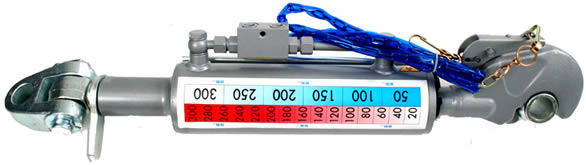

Cat 3 Knuckle + Cat 3 quick hitch claw other end
  • other specs as B8112 (above)

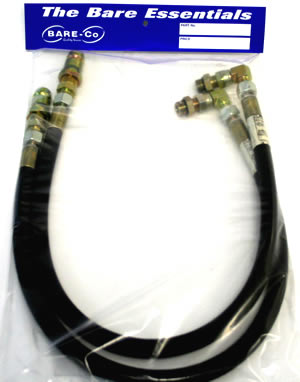

Hydraulic Top Link Hose Kit
B7220

Hydraulic Top Link Hose Kit includes swivel elbows, nipples, and male breakaway tips.


Spare Parts for Hydraulic Top Links
B8441

Seal Repair Kit fits B8106, B8107, B8108 Top Link


B8435

Seal Repair Kit fits B8109, B8110 Top Link


Cat 2 Ball End fits B8109, B8110 Top Link
Lock Nut fits B8109, B8110 Top Link
Clevis Knuckle fits B8109, B8110 Top Link - Cat 2
Clevis Knuckle fits B8112, B8113 Top Link - Cat 3
B8114

Seal Repair Kit fits B8111 Top Link


B8115

Seal Repair Kit fits B8112, B8113 Top Link


B8116

Replacement Check Valve Assy to fit B8111, B8112, B8113 Top Link


B8118

Threaded Cat 3 Ball End to fit B8112, B8113 Top Link


B8119

Piston Rod Only to fit B8111 Top Link


B8120

Piston to fit B8111 Top Link


B8121

Piston Rod Only to fit B8112 Top Link


B8122

Piston to fit B8112 Top Link
