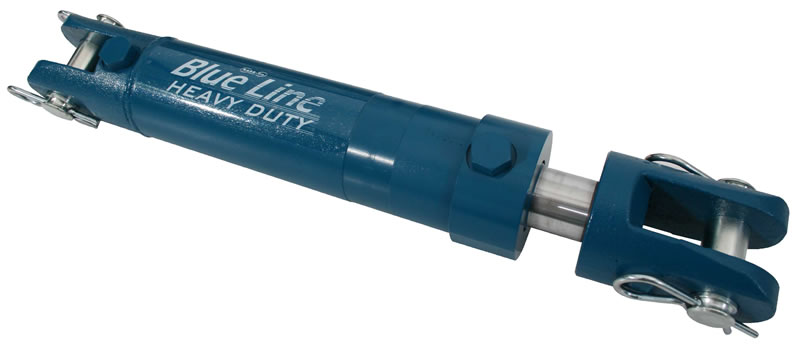

Blue Line Heavy Duty Cylinders
BLUE LINE - HEAVY DUTY HYDRAULIC CYLINDERS

Rated Working Pressure - 3,000 PSI (20,685 KPA)

Part No.

Bore

Stroke

Shaft Diameter

Closed Length

Port Size

Pin Diameter

Seal Kits
2"
8"
1"
20 1/4"
9/16" UNF
UN O-ring

1"

10"
20 1/4"
12"
22 1/4"
14"
24 1/4"
18"
28 1/4"
24"
34 1/4"
48"
58 1/4"

B83087

2 1/2"

6"

1 1/2"
18 1/4"
3/4" UNF
UN O-ring

B83031

8"

20 1/4"

10"
22 1/4"
12"
24 1/4"
14"
26 1/4"
18"
30 1/4"
24"
36 1/4"

B83029

3"

8"

20 1/4"

12"
24 1/4"
16"
28 1/4"
18"
30 1/4"
24"
36 1/4"
3 1/2"
8"
1 3/4 "
20 1/4"
16"
28 1/4"
24"
36 1/4"
4"
8"
2"
20 1/4"
12"
24 1/4"
18"
30 1/4"
24"
36 1/4"
