Implement Jacks and Winch

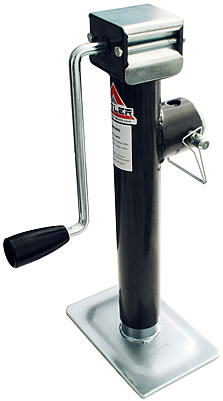

Top-Wind Implement Jack

Side-Wind Implement Jack

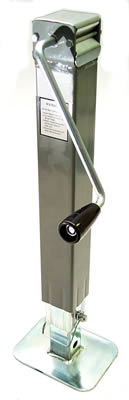

70mm (2 3/4") Square Drop-Leg Implement Jack

Maximum Static Capacity:
2250kg (5000lbs)
Winding Capacity:
1,500kg (3,300lbs)
Closed Height: (from mounting)
380mm (15")
Travel: 380mm (15")
Includes Weld-On Bracket

Maximum Static Capacity:
2250kg (5000lbs)
Winding Capacity:
1,500kg (3,300lbs)
Closed Height: (from mounting)
290mm (11 ½")
Travel: 250mm (10")
Includes Weld-On Bracket

Maximum Static Capacity: 2250kg (5000lbs)
Winding Capacity: 1,500kg (3,300lbs)
Closed Height: (from mounting) 300mm (12")
Travel: 250mm (10")
Maximum Static Capacity: 2250kg (5000lbs)
Winding Capacity: 1,500kg (3,300lbs)
Closed Height: (from mounting) 380mm (15")
Travel: 380mm (15")
Maximum Static Capacity: 3178kg (7000 lbs)
Winding Capacity: 2,000kg (4,400lbs)
Length: - Leg retracted: 520mm (20 ½ ")
Length - Leg extended: 890mm (35")
Length of screw travel: 406mm (16")
Maximum length - 1295mm (51")

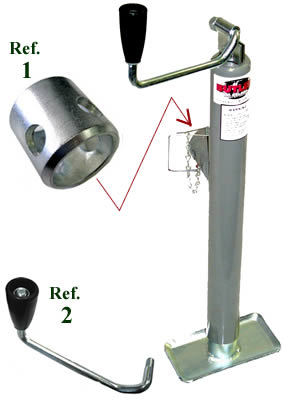

Ref 1 B8697 Replacement Weld-on Tube
Ref 2 B8698 Replacement Handle

Ref 1 B8697 Replacement Weld-on Tube



Ref.
1

Ref 1 B8695 Optional Weld-on Mounting Kit

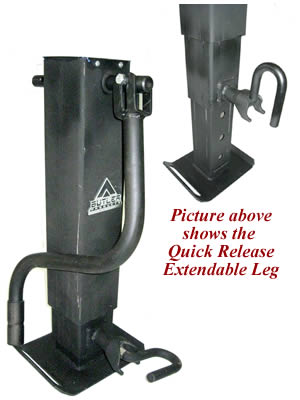

Heavy Duty Drop Leg
Implement Jack

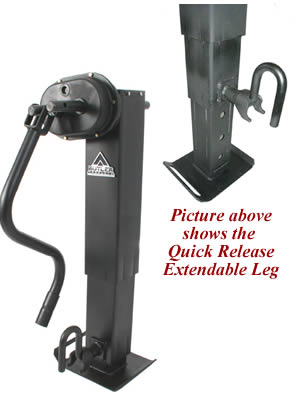

Heavy Duty 2 Speed Drop Leg
Implement Jack

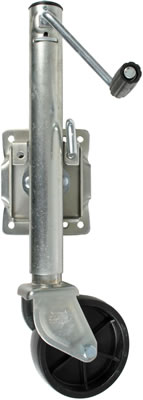

Swivel Mount Jockey Wheel
5500kg (12000 lbs) Static Capacity
4500kg (10000 lbs) Winding Capacity
Closed Length - Leg retracted 635mm (25")
Closed Length - Leg extended 875mm (34.5")
Plus Length of screw travel - 300mm (12")
8000kg (18000 lbs) Capacity
Closed Length - Leg retracted 635mm (25")
Closed Length - Leg extended 875mm (34.5")
Plus Length of screw travel - 300mm (12")
Swivel mount jockey wheel
500kg (1100 lbs) Capacity
Closed Height from Mounting -
320mm (12 3/4")
Travel 275mm (10 3/4")
Replacement Parts for B9696 Jack

Ref 1 B9681 Pinion
Ref 2 B9680 Crown Wheel
Ref 3 B9682 Floating Nut
Ref 4 B9683 Replacement Crank Handle
