Hinge Pins, Clevis Pins & Collars
Hinge Pins - Clevis Pins & Collars
ZINC PLATED CLEVIS PINS
PART No
Dia
USEABLE LENGTH
B6104
3/16"
3/4"
B5104
1/4"
1"
B5105
5/16"
7/8"
B5106
1 1/4"
B5107
3/8"
1 1/8"
B5108
1 1/2"
B6671
7/16"
1 5/16"
B5109
1 3/4"
B5110
1/2"
2"
B5103 CLEVIS PIN ASSORTMENT
Kit contains 90 Pins 1/4" dia. to 1/2" dia.
PART No
Dia
L
Qty.
B5104
1/4"
1"
15
B5105
5/16"
7/8"
20
B5106
1 1/4"
10
B5107
3/8"
1 1/8"
10
B5108
1 1/2"
15
B5109
7/16"
1 3/4"
10
B5110
1/2"
2"
10
HEAVY DUTY PINS
PART No
Dia
USEABLE LENGTH

B2107
5/8"
(16mm)
51mm (2")

B1640

76mm (3")

B6831

76mm (3")

B2747

3/4"
(19mm)
57mm (2 1/4")

B73

76mm (3")

B75

85mm (3 3/8")

B74

98mm (3 7/8)

B77

120mm (4 3/4")

B54

7/8"
(22mm)
90mm (3 1/2")

B215

105mm (4 1/8")

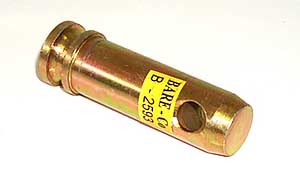

B2593

1"
(25.4mm)
51mm (2")

B7593

63mm (2 1/2")

B1200

76mm (3")

B76

87mm (3 7/16")

B81

115mm (4 1/2")

B80

136mm (5 3/8")

B216
1 1/8"
(28.6mm)
105mm (4 1/8")
1 1/4"
(31.75mm)
115mm (4 1/2")
1 7/16"
(36.5mm)
127mm (5")
203mm (8")
MATERIAL 1045
ZINC PLATED

Useable length is from under the head
to the edge of the hole.
SHAFT LOCK COLLARS
PART No
SUITS SHAFT Dia
B5125
1/2"
B5118
5/8"
B5119
3/4"
B5120
7/8"
B5121
1"
B5122
1 1/4"
B5123
1 3/8"
1 1/2"
ZINC PLATED
Clevis Pins & Collars
