Jumbo Top Link
Jumbo Top Link

1 3/8" UNC (35mm) THREAD Dia.

PART No B2660 with Cat. 2 Ends
PART No B2417 with Cat. 3 Ends

This is a massive link for use with Multi-Tyne Rippers.
Available in both Cat. 2 and Cat. 3.
Adjustment range 63cm to 91cm (24.75" to 35.75")

B2658

Cat. 2

L.H. Thread 1 3/8" U.N.C.

B2659

Cat. 2

R.H. Thread 1 3/8" U.N.C.

B2515

Cat. 3

L.H. Thread 1 3/8" U.N.C.

B2516

Cat. 3

R.H. Thread 1 3/8" U.N.C.

B6348 Locknut - 1 3/8 UNC Right Hand Thread
48 cm (19") Centre Tube

1 3/8" UNC (35mm) THREAD Dia.

PART No B2420 with Cat. 2 Ends

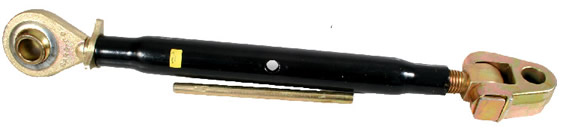

PART No B2421 with Cat. 3 Ends

This is a massive link for use with Multi-Tyne Rippers.
Available in both Cat. 2 and Cat. 3.
Adjustment range 63cm to 91cm (24.75" to 35.75")

B2422

Cat. 2

L.H. Thread 1 3/8" U.N.C.

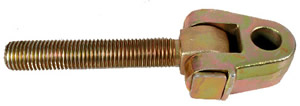

Knuckle End

B2423
B2422
B2659
B2516

B2659

Cat. 2

R.H. Thread 1 3/8" U.N.C.
Ball End

B2423

Cat. 3

L.H. Thread 1 3/8" U.N.C.
Knuckle End

B2516

Cat. 3

R.H. Thread 1 3/8" U.N.C.
Ball End

48 cm (19") Centre Tube
