FIAT - 280mm (11") 513-615 Clutch
280mm (11") CLUTCH
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

PART No.
REPLACES
DESCRIPTION
APPLICATION

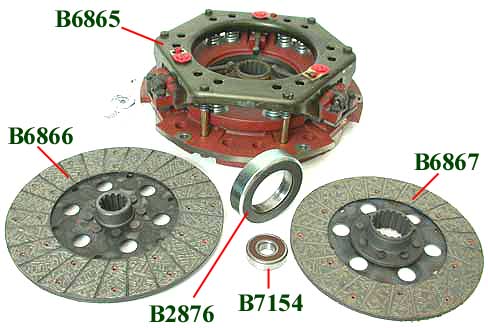

B6865
44010487
COMPLETE CLUTCH ASSEMBLY
includes both clutch plates
(Organic main plate)
513, 615

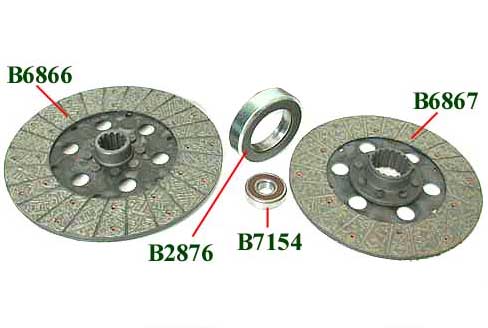

B6866
9956999
MAIN CLUTCH PLATE
(Organic disc type)
280mm x 35mm x 12 splines
B6867
9023898
P.T.O. CLUTCH PLATE
250mm x 50.5mm x 18 splines
B2876
44002756
CLUTCH THRUST BEARING
B7154
28996660
FLYWHEEL PILOT BEARING
280mm (11") CLUTCH
