Chamberlain - Front Axle, Steering
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.

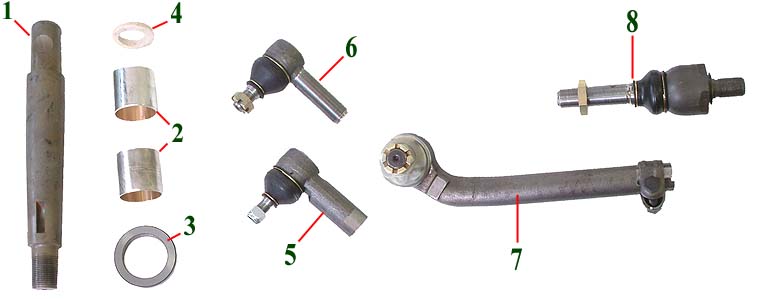

| Ref.
|
Part
No. |
Replaces
|
Description
|
Application
|
| 1
|
B668 |
CHAM50161
CHAM37289
CHAM60296 |
Spindle
(King Pin) 324mm long
(Confirm Length) |
Champion
236, MKIII, C6100, Champion 306,
Countryman 306,
[Countryman 354, C670 with
fixed width front axle)
3380
fitted with original type 2 piece stub axle
|
| B669
|
CHAM61071 |
Spindle
(King Pin) 353mm long
(Confirm Length)
|
4080,
4080B, 4280
fitted with original type 2 piece stub axle |
| 2
|
B2982
|
CHAM37080
CHAM60667 |
Bush
|
Champion
236, MKIII, C6100, Champion 306,
Countryman 306, Countryman
354, C670,
3380, 4080, 4280, 4480,
4090, 4290, 4490, 4690 |
| 3
|
B2927
|
CHAM37092 |
Thrust
Bearing
|
| 4
|
B113 |
CHAM37089
E1222M
CHAM69596
|
Seal
|
| 5
|
B670 |
CHAM37094
CHAM63552
CHAM70728
|
Female
End
1" dia. LH Thread |
Tie Rod and Drag Link Ends
2 x B670 + 2 x B671 used
Champion
236, MKIII, C6100, Champion 306,
Countryman 306,
[Countryman 354, C670 with
fixed width front axle)
9G,
Industrial MKII,
B671 only used (Female)
from Agric No. DM1504 and from Industrial No. IND1114 |
| B671
|
CHAM22442
CHAM63551
CHAM70727 |
Female
End
1" dia. RH Thread
|
| 6
|
B4670 |
CHAM56858 |
Male
End
1" dia. LH Thread |
Models
with fixed Axle Width:
3380,
4080, 4280, 4480,
4090, 4290, 4490, 4690
Models
with Adjustable Width Axle:
use B4671 on RH side only
|
| B4671 |
CHAM56782 |
Male
End
1" dia. RH Thread
|
|
7
|
B956 |
AL39315 |
LH
Outer End
|
4090
Four Wheel Drive
|
| B955 |
AL39318
|
RH
Outer End
|
| 8
|
B957 |
AL39316 |
Inner
End |
|
