IH - McCormick "LUK" Types (6 Fingers)
|
McCormick "LUK" Types (6 Fingers)
|
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only

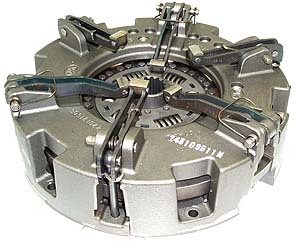

DUAL PLATE CLUTCH |

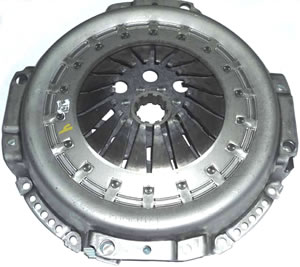

B6649 SINGLE PLATE CLUTCH |
|
Application
|
Clutch
Kit
Full kit includes clutch assy, plates and all bearings
shown.
|
Clutch
Assembly
|
Main
Drive Plate
|
PTO
Plate
|
Thrust
Bearing
|
Pilot
Bearing
|
11" DUAL PLATE CLUTCH
F70, F75, F80, F85, F90, F100
T70, T80, T90, T100,
V60, V65, V70, V80,
C75MAX, C80MAX, C85 MAX,
These
models have option for 12" Clutch (B9286
kit below)
Confirm 11" or 12" plate dia |
|
B9284
11" Organic Clutch
|
Your
|
|
B6735
= 3300000M99
Main Plate Incl.- NOT P.T.O.
|
|
Your
|
|
Organic
B6737
= 3311538M92
280 x 40mm 14 splines sprung hub
|
|
Your
|
|
B2864
=
1424135M91
280 x 25mm
10 Splines Organic
|
MAIN
B503
=
1423473M91
P.T.O.
B2878
1442381X1
|
B3640
=
339599X1
|
 |
Choice |
B9285
11" Ceramic Clutch
|
|
Choice |
B6736
=3304585M94
Main Plate Incl.- NOT P.T.O.
|
|
Choice |
Ceramic Pads
B6739
= 3311326M91
|
|
12" DUAL PLATE CLUTCH
Following
Models when fitted with
12" clutch |
F70, F75, F80, F85, F90, F100
T70, T80, T90, T100,
V60, V65, V70, V80,
C75MAX, C80MAX, C85 MAX, |
B9286
12" Ceramic Clutch
|
B7507
=3532192M94
(12")
Main Plate Incl.- NOT P.T.O.
|
B7532
=3105232M92
310 x 40mm 14 splines
Ceramic Pads Spring Hub
|
B7533
=
3105233M91
310 x 25mm
10 splines
Organic
|
12" SINGLE PLATE CLUTCH
CX50, CX60, CX70
CX80, CX85, CX90, CX95, CX100, CX105
C50, C60, (C70 with single plate clutch), C80, C90, C100 |
|
|
B6647
CERAMIC
= 330732A1
12'' x 1 1/8'' 10 spline
7 Pairs of Pads
Replaces 5 Pad Plate |
NOT
FITTED |
B6627
=
85104C91 85104C92 |
|
|
