"S" Tynes
"S" Tynes
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

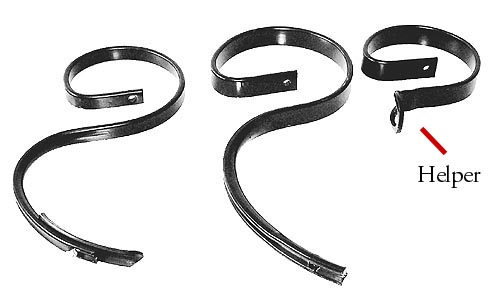

STANDARD CLEARANCE
Supplied with Standard Point
HIGH CLEARANCE - EXTRA HEAVY DUTY
Point NOT included
Underframe clearance "A" = 390mm
Underframe clearance "A" = 500mm
APPLICATIONS
PART No.
APPLICATIONS
PART No.

Standard - 10mm x 32mm

B4051

Extra Heavy Duty - 45mm x 12mm
Will replace most light duty high clearance tynes - order matching Tyne Clamp

B7428

Heavy Duty - 12mm x 32mm

B3912

Helper spring for heavy applications

B7429
TYNE TO FRAME CLAMPS
TYNE TYPE
FRAME SIZE
CLAMP PART No.

Standard clearance tynes
(10mm x 32mm & 12mm x 32mm)

50mm x 50mm

B4075

50mm x 15mm

B33

65mm x 65mm

B43

High Clearance - Extra Heavy Duty Tynes
12mm x 45mm

50mm x 50mm

B46 - without helper tyne

B44 - with helper tyne

65mm x 65mm

B8430 - without helper tyne

B7430 - with helper tyne

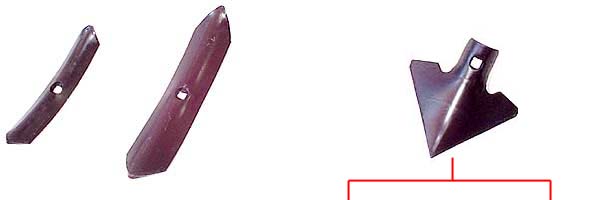

"S" TYNE POINTS

Reversible Point
190mm x 37mm x 6mm

Reversible Point
260mm x 52mm x 6mm

Sweep Point
105mm x 4mm

Sweep Point
150mm x 4mm

Reversible Point
210mm x 40mm x 6mm
POINT BOLTS
SIZE
PART No.

10mm x 45mm
High Tensile - suits Extra HD Tyne

B7431

10mm x 38mm
Suits all Std Tynes

B7427
