Drawbar Pins
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

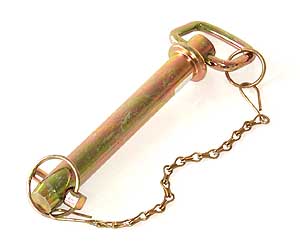

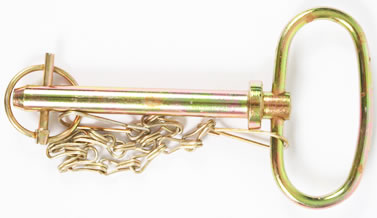

Standard Drawbar Pins

DIAMETER

PART No.

EFFECTIVE LENGTH

1/2" (12.7mm)
3 1/2" (90mm)
5/8" (16mm)
4 1/4" (108mm)









DIAMETER

PART No.

EFFECTIVE LENGTH

3/4" (19mm)
B408
3 3/4" (95mm)
B404
6 1/4" (160mm)
7/8" (22mm)
B405
1" (25.4mm)
B410
1 1/8" (28.6mm)
B2662
4 3/4" (120mm)
B412
6 1/4" (160mm)
B6412
7 1/4" (185mm)
8 1/4" (210mm)
Replaces CASE
232616A3
1 1/4" (32mm)
B415
6 1/4" (160mm)
1 3/8" (35mm)
B416
7 1/4" (185mm)
1 1/2" (38mm)
B417
2" (50mm)
B7417

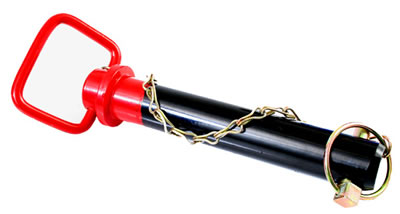

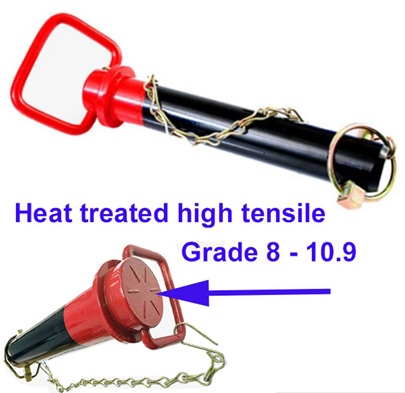

"Red Head" Heat Treated Grade 8 High Tensile Drawbar Pins

DIAMETER

PART No.

EFFECTIVE LENGTH

1" (25.4mm)
B8410
6 1/4" (160mm)
B6410
8 1/4" (210mm)
1 1/8" (28.6mm)
4 3/4" (120mm)
B9412
6 1/4" (160mm)
B8412
7 1/4" (185mm)
8 1/4" (210mm)
Replaces CASE
232616A3
1 1/4" (32mm)
B8415
6 1/4" (160mm)
B6415
8 1/4" (210mm)
1 3/8" (35mm)
B8416
7 1/4" (185mm)
9 1/4" (235mm)
1 1/2" (38mm)
B9417
7 1/4" (185mm)
9 1/4" (235mm)
2" (50mm)
7 1/4" (185mm)
9 1/4" (235mm)
All pins are cold forged or machined down from solid bar to provide integral safety collar.
Base material min. S1040 Carbon Steel - fitted with linch pin and chain assembly.
