130 HP Long Shaft Gearbox
130 HP Long Shaft Gearbox
Part No. B8667 - 1:1.92 ratio INCREASE
Part No. B8668 - 1:1.467 ratio INCREASE
Part No. B8673 - Reverse Rotation - as above
Part No. B8670 - 1.188:1 ratio DECREASE (SUIT 1000 RPM PTO)
Part No. B8672 - Reverse Rotation - as above
Part No. B9670 - 1:1 Reverse Rotation
Part No. B9672 - 1:1 Ratio

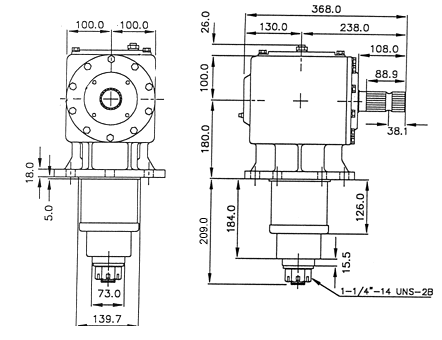

SPECIFICATIONS

A = 200mm (7.875")
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
INPUT SHAFT:
OUTPUT SHAFT:
60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped, Spring Loaded
Tapered Roller
EP-140
1 3/4" x 20 spline
60mm Dia
Standard Rotation
Reverse Rotation

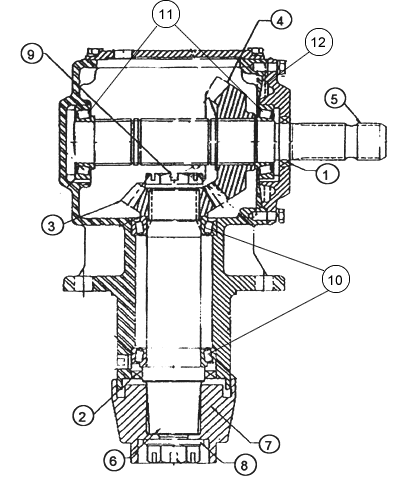

SPARE PARTS
Ref
Part No.
Description
1
Input Seal
2
Output Seal
3
Output Gear 13 teeth 25 splines (1 : 1.92 ratio)
Output Gear 13 teeth 17 splines (1 : 1.467 ratio)
Output Gear 19 teeth (1.188 : 1 ratio)
Output Gear 17 teeth (1 : 1 ratio)
4
Input Gear - 25 Teeth (1 : 1.92 ratio)
Input Gear - 19 Teeth (1 : 1.467 ratio)
Input Gear - 16 Teeth (1.188 : 1 ratio)
Input Gear 17 teeth (1 : 1 ratio)
5
Input Shaft
6
Output Shaft all except B8667
Output Shaft for B8667 Gearbox 1:1.92 ratio
7
Output Hub
8
Lower Output Nut
9
Top Output Nut
10
Output Bearing
11
Input Bearing
12
Input Gasket
