MF - Brakes
MF Brakes

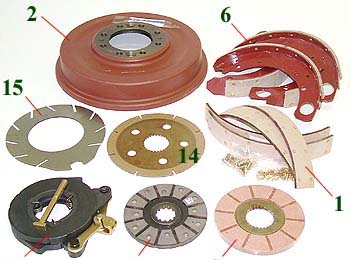

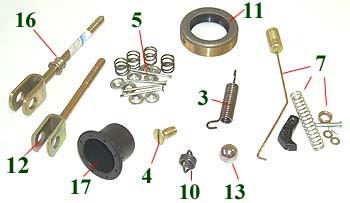

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only
    8
9  B504
9a   B6366







6a

18
Ref
Part No.
Replaces
Description
Application
1
B1849
1851062M91
202631
Lining Set - 2 wheels

Te20, MF35, MF135
MF148, 245, 550
MF240
with drum brakes

2
B6726
827707M5
Brake Drum
3
B5290
1890319M1
Spring (4 req.)
4
B1280
182278M1
Brake Drum Screw
5
B461
1810029M91
Fixing Set (2 req.)

MF35, 135, 148, 240, 245, 550

6
B7849
1810517M92
Brake Shoe Kit
(2 wheels)
Te20, MF35, MF135
MF148, 245, 550
MF240
with drum brakes
6a
825590M1
825591M1
Pair of Brake Centralisers
Te20
7
B5134
898654M92
892267M1
+ etc. etc.
Handbrake Linkage Repair Kit

MF135, 148, 65, 165, 168, 175, 178
MF185, 188, 240, 250

8
B507
1822606M92
Brake Actuator Assembly
(1 req. per wheel)

MF (LANDINI) MF154, 184
MF194
up to ser. no. 2235765

9
B504
1823112M91
H.D. Disc
2 per wheel req.
9a
B6366
1021314M91
Dry Brakes

MF65
MF165
with dry brakes
i.e. up to ser. no. 597745
MF175, 178
(round axle housing=dry brakes)

10
B5184
1005510M1
Disc Spring
(6 per tractor)
11
B3783
1860482M91
Axle Brake Seal
12
B5135
184334M1
Brake Pull Rod
13
B462
16779X
Ball
Suits wet + dry brakes

Dry Brakes, B462 - 5 per wheel

Wet Brakes, B462 - 6 per wheel

14
B3816
1860964M2
Sintered Metal Disc
(10 req. per tractor)
Wet Brakes

(square axle housing=wet brakes)
MF165 with wet brakes
i.e. from new ser. no. 100001
(MF240 wet brakes) 168, 185, 188
250, 265, 275, 285, 290
MF350, 355, 360, 365, 375, 390, 398
MF399, 565, 575, 590, 595, 675, 690
MF698, 699, 1080, 1085

15
B3817
1860965M2
Intermediate Disc
(6 req. per tractor)
16
B463
1861676M91
Brake Pull Rod
17
B7352
1860959M1
Brake Cover Seal
18
B7848
827143M91
Complete Brake Assembly (12 Bolt Fixing)
Includes stepped studs for early models with 6 bolt fixing
Te20 petrol + diesel - 12Volt only, FE35, MF35, MF135
MF148, 245, 550
MF240
with drum brakes
