Remote Hydraulics Kits to suit FORD
REMOTE HYDRAULIC KITS
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
TO SUIT FORD
B1467

Remote Hydraulic Kit
Includes:

  • B8210 diverter valve
  • Control valve
  • Breakaway kit
  • All hoses and fittings

With Single Spool Control Valve to operate one double acting ram or one single acting ram


FORD
2000, 3000, 4000, 2600, 3600, 3900, 4100, 4600
2610, 3610, 3910, 4110, 4610

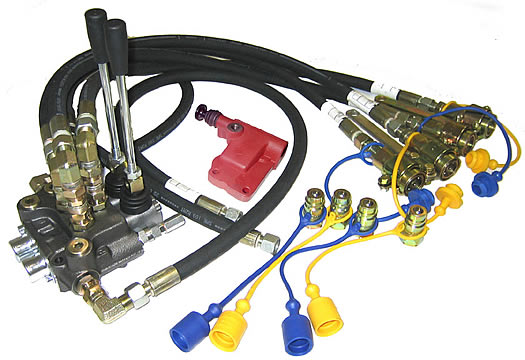

B1468

With Double Spool Control Valve to operate two double acting rams
B1469

As above less diverter Valve [not req.]

With Single Spool Control Valve to operate one double acting ram
5000, 7000
B1470

With Double Spool Control Valve to operate two double acting rams

TO SUIT M.F.
*B3482
Gearbox Mounted Combined Valve
for One Double Acting Ram
Includes:
  • Monobloc tractor isolator / spool valve
  • B3743 Breakaway kit
  • All hose and fittings to complete the job


*B3382
Mudguard Mounted Spool Valve
for One Double Acting Ram
Includes:
  • Single spool control valve to operate one double acting ram
    (See Remote Control Valves)
  • B5210 3 way tractor divertor valve to isolate tractor linkage/remotes
  • B3743 Breakaway kit
  • All hose and fittings to complete the job
  • * SEE NEW MONOBLOCK VALVE

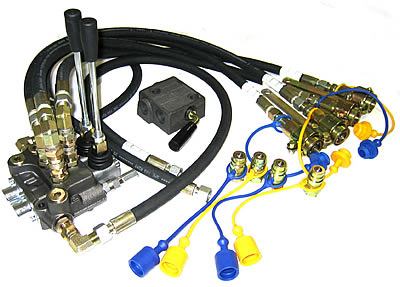

B3383
Mudguard Mounted Spool Valve
for TWO Double Acting Rams
Includes:
  • Double spool control valve to operate two independent double acting rams (loader with hyd bucket etc.) - (See Remote Control Valves)
  • B5210 3 way tractor divertor valve to isolate tractor linkage/remotes
  • 2 x B3743Breakaway kits
  • All hose and fittings to complete the job
REMOTE HYDRAULIC KITS
