FORGED HEAVY DUTY "D" SHACKLES - Heat Treated Pin
WLL RATED to AS2741 Standard for LIFTING
WLL = Work Load Limit |
|
|
PART No.
|
BOW SIZE
|
PIN SIZE |
WLL
Work Load Limit |
|
B2067
|
8 mm |
5/16" |
9.5 mm |
3/8" |
0.75 Tonne |
|
B2071
|
10 mm |
3/8" |
11 mm |
7/16" |
1.0 Tonne |
|
B2068
|
11 mm |
7/16" |
13 mm |
1/2" |
1.5 Tonne |
|
B2072
|
13 mm |
1/2" |
16 mm |
5/8" |
2.0 Tonne |
|
B2073
|
16 mm |
5/8" |
19 mm |
3/4" |
3.25 Tonne |
|
B2069
|
19 mm |
3/4" |
22 mm |
7/8" |
4.75 Tonne |
|
B2070
|
25 mm |
1" |
28.6 mm |
1 1/8" |
8.5 Tonne |
|
|

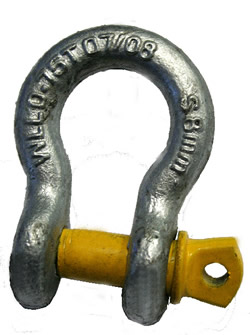

FORGED HEAVY DUTY BOW SHACKLES - Heat Treated Pin
WLL RATED to AS2741 Standard for LIFTING
WLL = Work Load Limit |
|
|
PART No.
|
BOW SIZE
|
PIN SIZE |
WLL
Work Load Limit |
|
B2060
|
8 mm |
5/16" |
9.5 mm |
3/8" |
0.75 Tonne |
|
B2061
|
10 mm |
3/8" |
11 mm |
7/16" |
1.0 Tonne |
|
B2066
|
11 mm |
7/16" |
13 mm |
1/2" |
1.5 Tonne |
|
B2062
|
13 mm |
1/2" |
16 mm |
5/8" |
2.0 Tonne |
|
B2063
|
16 mm |
5/8" |
19 mm |
3/4" |
3.25 Tonne |
|
B2064
|
19 mm |
3/4" |
22 mm |
7/8" |
4.75 Tonne |
|
B2065
|
25 mm |
1" |
28.6 mm |
1 1/8" |
8.5 Tonne |
|
|
