Ford - Instruments
Instruments

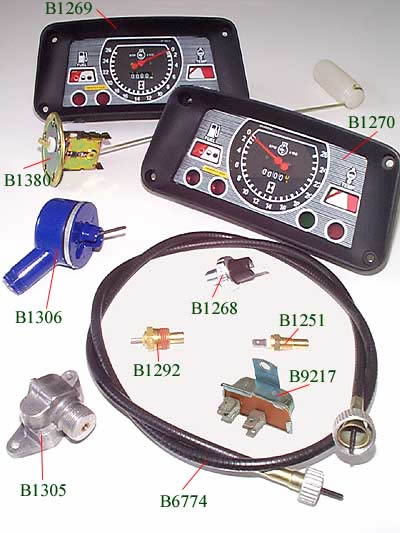

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

Application
Instrument
Cluster
Tacho
Cable
Tacho Drive
Adaptor
Temp
Sender
Oil
Sender
Fuel
Sender
Voltage
Stabiliser

Super Dexta

N/A
B3829
134cm (52") long
N/A
N/A
N/A
N/R
N/R

Super Major

5000, 7000

B1269
=
EHPN10849A
3958741
Clockwise face,
cable driven
from
generator

Confirm Rotation
before ordering
B6774
=
D9NN17365AB
3933021
[Threaded end
connection]


115cm (45") long
B1305
=
C5NF17373B
1812583
[on generator]
B1251
=
C4AH10884A
1784077
B1268
=
D8NN92768BD
3953056
B1380
=
3917491
B9217
=
C7NN10N507A

2000, 3000
4000

B1379
=
3917492

2600, 3600
4100, 4600

B1270
=
E5NN10849BA
3933692
E5NN-10849BA
Anticlockwise
face, cable
driven from
oil pump
Confirm Rotation
before ordering
B1306
=
E9NN17N264AA
3987692
[on oil pump]
Up to 3/1976
B1251
[1/8 NPT thread]
=
C4AH10884A
1784077

From 4/1976
B1479
[3/8 NPT thread]
=
D5NN10884-A
3903061

5600, 6600
7600

B1380
=
3917491

5610, 6610
7610.
up
to
4/1983

B1292
=
D8NN10884AA
9712608
[17mm dia thread]

2610, 3610
4110, 4610

B1379
=
3917492

2310, 2810
2910, 3230

3430, 3930
4130, 4630
4830

N/A

6700, 7700
(
5610, 6610
7610
from
May 1983)

N/A
B6775
=
D5NN17365D
3904959
[Push type
connection]
N/A
B1251
=
C4AH10884A
1784077
B1268
=
D8NN9278BD
3953056
N/A

6710, 7710

N/A
3010S, 4010S,
TD55D, TD65D, TD75D, TD85D, TD95D,
TN55/D/S/V, TN60VA, TN65/D/S/V/F/N, TN70/D/F/S, TN75/D/F/S/V/N, TN80/F, TN90/F, TN95/F/NA/VA
N/A
N/A
B798
=
82036587
5107603
3435, 3935, 4135
B909
=
4976720
N/A
