Weld-On Ball Ends - Narrow Shank / Wide Shank / Round Shank / Weld In
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
SUPERIOR QUALITY LOWER LINK REPAIR END
PART No B652

CAT 2 - 1 1/8" HOLE DIA

This more expensive precision ball end
is ideal for repair of tractor lower links.


SHANK WIDTH 80mm -
SHANK THICKNESS 20mm

NARROW SHANK
PART No.
HOLE DIA.
"B"
"C"
"D"
"E"
B310
3/4"
(19mm)
30
52
45
13
B311
1"
(25.4mm)
30
59
51
17
Now forged from carbon 1045 steel!
WIDE SHANK
PART No.
HOLE DIA.
"B"
"C"
"D"
"E"
B328
7/8"
(22mm)
62
71
35
16
B6329
1"
(25.4mm)
71
78
38
20
B329
1 1/8"
(28.6mm)
70
78
38
20
B2591
1 7/16"
(36.5mm)
78
86
45
20
ROUND SHANK
PART No.
HOLE DIA.
"B"
"C"
"D"
"E"
B7310
3/4"
(19mm)
30
65
45
15
WELD-IN
Ideal for drawbar ball hitch fabrication
PART No.
HOLE DIA.
O.D.
WIDTH
B2461
7/8"
(22mm)
67 mm
15.5 mm
B2462
1"
(25.4mm)
80 mm
22.5 mm
B2463
1 1/8"
(28.6mm)
B6690
1 1/2"
(38mm)
100 mm
28 mm

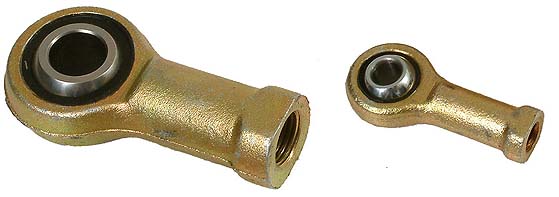

THREADED BALL ENDS

IMPERIAL
METRIC
Part No.
Hole Dia
Thread
Part No.
Hole Dia
Thread
3/16"
3/16" UNF
6mm
M6 x 1.0
1/4"
1/4" UNF
8mm
M8 x 1.25
5/16"
5/16" UNF
3/8"
3/8" UNF
1/2"
1/2" UNF
3/4"
3/4" UNF
